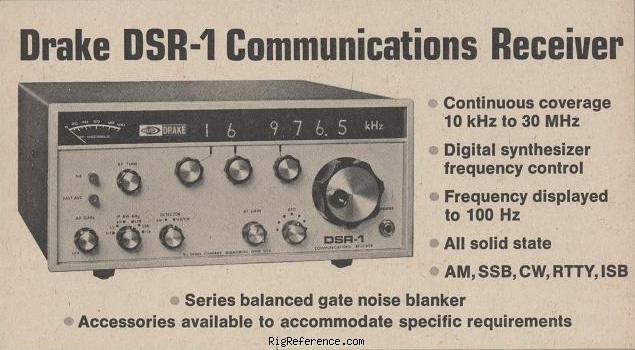

The Drake DSR-1 is a desktop shortwave receiver covering 0.1-30 MHz. It features a double/triple conversion receiver system, Nixie tube display, BFO, and noise blanker. The audio output is 2 W and it operates on Mains (120/240 V AC) power. Dimensions are 140 × 330 × 290 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM USB LSB ISB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double / triple conversion
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 2 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (120/240 V AC)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 330 × 140 × 290 mm (12.99 × 5.51 × 11.42 in)
- Weight
- 7.70 kg (17.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1971 and 19xx
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Nixie tube display
BFO
Noise blanker - Accessories
- -
- RigReference ID
- 5579
- MPN
- DRAKE-DSR-000001
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake DSR-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Receiver equipment, the estimated value of the Drake DSR-1 is around:
- USD 159 ~ USD 295
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
