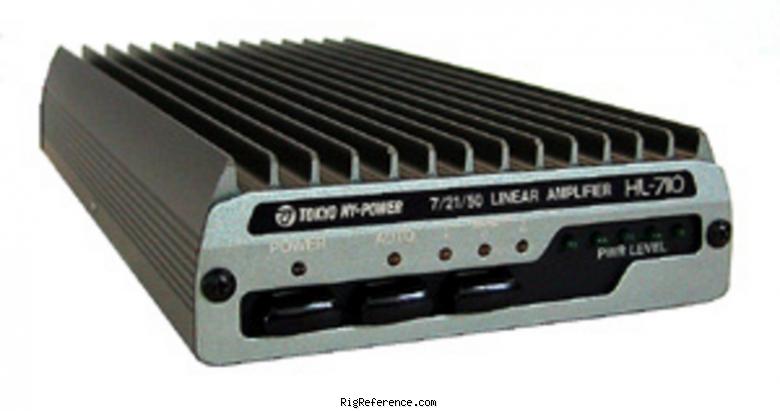

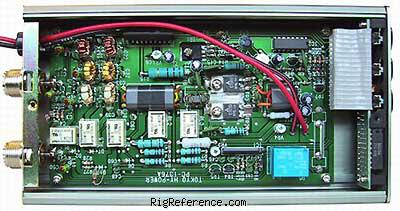

The Tokyo Hy-Power HL-710 was made to match the Tokyo Hy-Power HT-750 and turns the set into a portable mini-station. It features automatic band switching when coupled to the Tokyo Hy-Power HT-750. Finals: 2 transistors in Class AB push-pull (2SC1969).
Note: Illegal to import/sell HL-710/750 in US because of then-existing FCC restrictions on amps operable 24-35MHz (either amp would boost 10m input signal with band set to 15m).
General characteristics
- HAM bands
- 40m 15m 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 40 / 15 / 6 m
- Modulations
- FM CW SSB
- RF-output
- 10 W @ 3 W (40/15m) / 6 W (6m) input

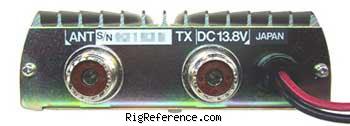

Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 3 A max.
- TX
- ?
Physical
- Dimensions (w×h×d)
- 105 × 35 × 192 mm (4.13 × 1.38 × 7.56 in)
- Weight
- 800 gr (1.8 lbs)
- Form factor
- Portable
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5583
- MPN
- TOKYO-HY-POWER-HL-000710
