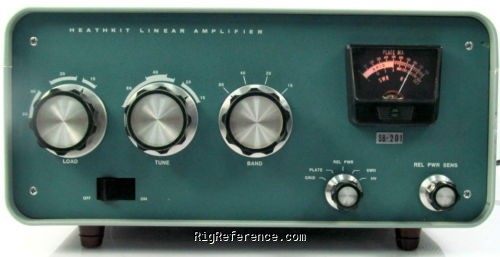

Heathkit SB-201

Desktop Shortwave Linear Amplifier

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Heathkit SB-201 rigs and spare parts on eBay

Find the Heathkit SB-201 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands: 80m 40m 20m 15m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Transmitter

TX-range: 15-80m
Modulations: CW SSB
RF-output: 600 W output with 100 W drive

Connections

Antenna: SO-239
Impedance: 50/75Ω
Other: -

Electrical

Power requirements: Mains
Current drain RX: ?
TX: 8 A @ 240 V AC, 16 A @ 120 V AC

Physical

Dimensions (w×h×d): 378 × 168 × 340 mm (14.88 × 6.61 × 13.39 in)
Weight: 15.85 kg (35.0 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 6205
MPN: HEATHKIT-SB-000201

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit SB-201. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
