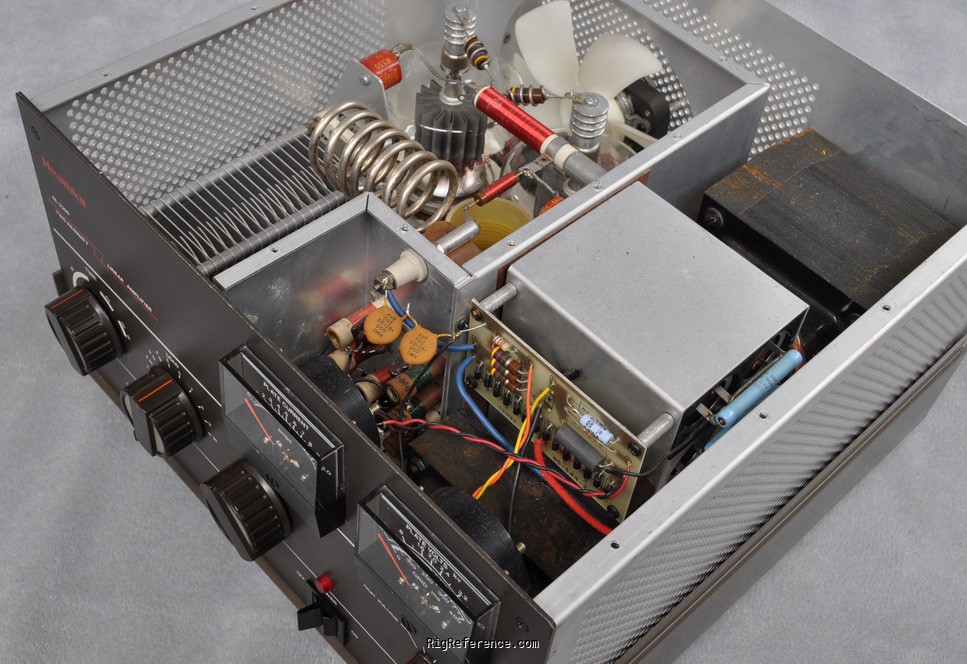

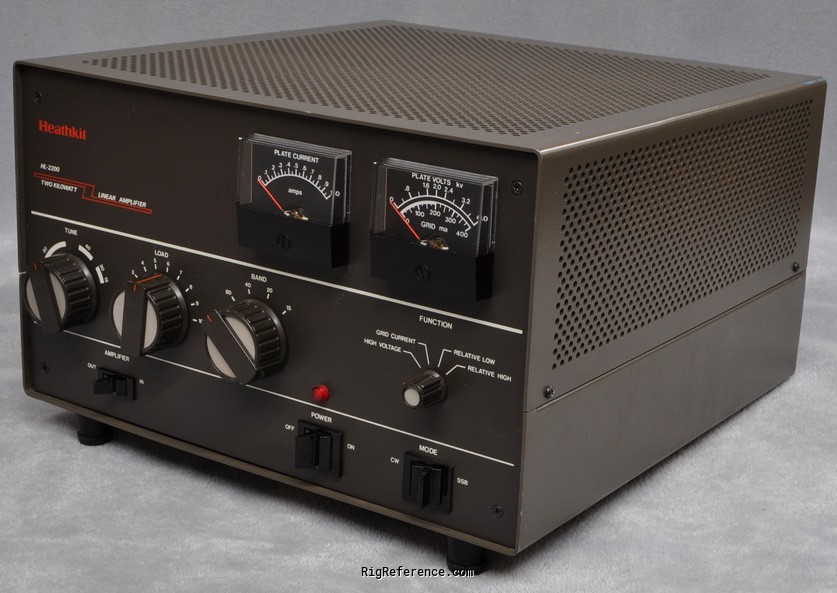

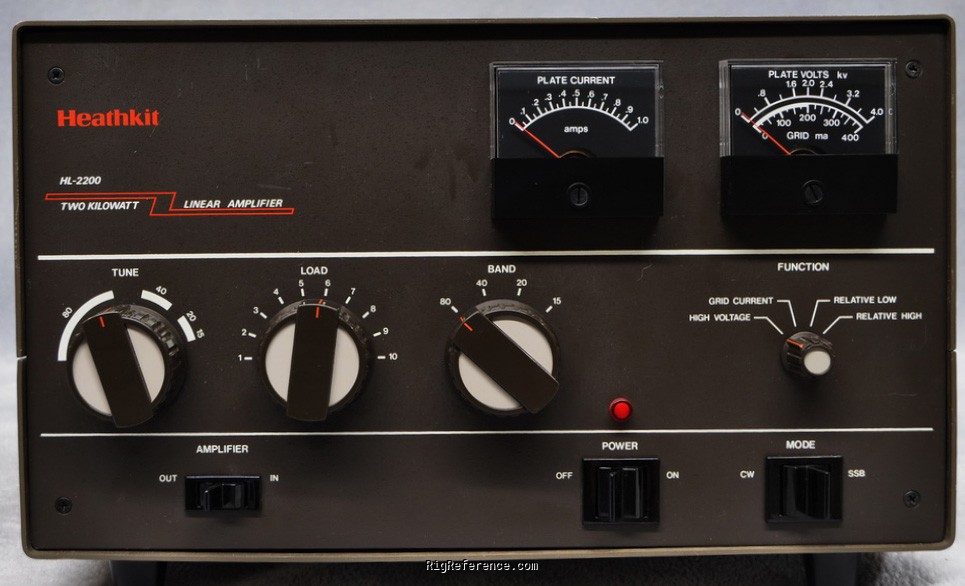

The Heathkit HL-2200 is one of Heathkits last made amps. It probably dates from the mid to late 1980's. It is similar to the Heathkit SB-221, but ads a newer case design. The amp uses Eimac 3-500Z tubes. A max of 100 W input drive power is required. On CW and RTTY the maximum continuous transmit time is 10 minutes.

General characteristics

HAM bands
80m  40m  20m  15m
Frequency stability
?
Tuning steps
Continuous
Memories
?

Transmitter

TX-range
80-15 m
Modulations
AM   CW   SSB   RTTY
RF-output
SSB: 2000 W PEP, CW/RTTY: 1000 W

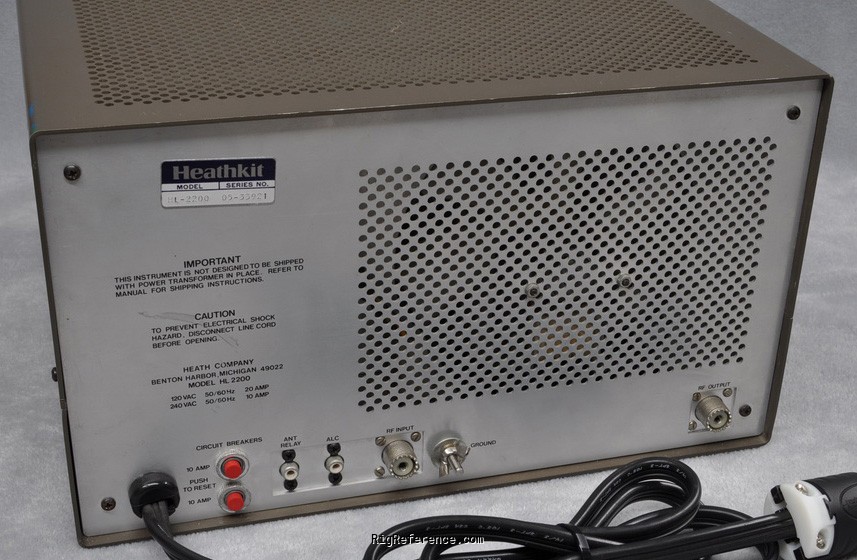

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (120/240 V AC - 240 V DC recommended)
Current drain RX
-
TX
20/10 A

Physical

Dimensions (w×h×d)
378 × 210 × 368 mm (14.88 × 8.27 × 14.49 in)
Weight
22.70 kg (50.1 lbs)
Form factor
Base Station
Manufactured
Between 1983 and 198x in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6200
MPN
HEATHKIT-HL-002200

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
N8CL 2 years ago by clind8

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HL-2200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit HL-2200 is around:

  • USD 8.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1984 USD 600.00 New / Mint clind8
