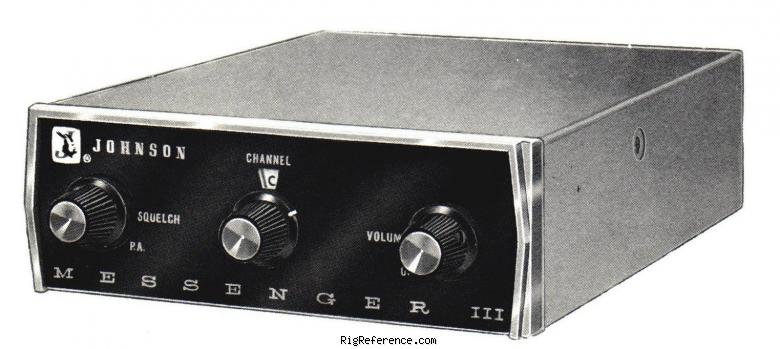

E.F. Johnson Messenger 300

General characteristics

HAM bands

11m (CB)

Frequency stability

?

Tuning steps

Channelized

Memories

12 channels in 1 bank(s)

Receiver

RX-range

26.965-27.255 MHz

Modulations

AM

Sensitivity

0.5 µV

Selectivity

7 kHz @ -6 dB
19 kHz @ -60 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

3 W

Transmitter

TX-range

26.965-27.255 MHz

Modulations

AM

RF-output

3 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

157 × 55 × 222 mm (6.18 × 2.17 × 8.74 in)

Weight

2.30 kg (5.1 lbs)

Form factor

Base Station

Manufactured

Between 195x and 196x in USA

Other features

Usage

Citizen Band (27Mc)

Features + options

-

Accessories

-

RigReference ID

5587

MPN

E.F.-JOHNSON-MESSENGER-000300
