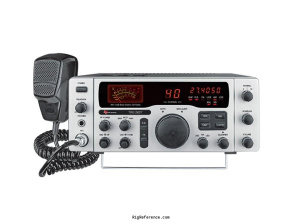

Ranger TRE-2627

General characteristics

HAM bands

11m (CB)

Frequency stability

0.003% (-30 to +50 °C)

Tuning steps

?

Memories

?

Receiver

RX-range

26.965-27.405 MHz

Modulations

AM   USB   LSB

Sensitivity

AM: 0.5 µV (10 dB S/N)
SSB: 0.25 µV (10 dB S/N)

Selectivity

60 dB (adjacent channel)

Filters

?

Receiver system

Single conversion (SSB) / double conversion (AM) superheterodyne

IF-frequencies

10.695 MHz / 455 kHz

Image rejection

50 dB

Audio output

2.5 W (8 ohm, 10% THD)

Transmitter

TX-range

26.965-27.405 MHz

Modulations

AM   USB   LSB

RF-output

AM: 4 W, SSB: 12 W PEP

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

110-120 V AC or 13.8 V DC

Current drain RX

0.5-1 A (13.8 V DC)

TX

3.5 A max (13.8 V DC)

Physical

Dimensions (w×h×d)

286 × 121 × 343 mm (11.26 × 4.76 × 13.50 in)

Weight

5.44 kg (12.0 lbs)

Form factor

Base Station

Manufactured

Between 2025 and 20xx in Malaysia

Other features

Usage

Citizen Band (27Mc)

Features + options

40 channels
S/RF/SWR/modulation meter
Channel 9/19 switch
PA
Roger beep
ANL/NB
Galaxy noise filter (GNF)
Dimmer

Accessories

-

RigReference ID

6692

MPN

RANGER-TRE-002627

Manuals, diagrams and brochures

No manuals yet for the Ranger TRE-2627. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ranger TRE-2627. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Ranger TRE-2627 is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
