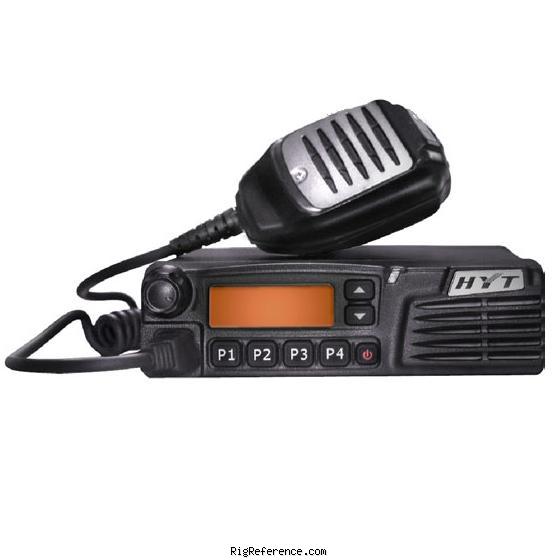

Hytera TM-610

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Hytera TM-610 is a Mobile VHF/UHF Transceiver. Frequency range for both RX and TX are 136-174 MHz, 400-470 MHz, 450-500 MHz, and 350-400 MHz (depending on version). Frequency stability is ± 2.5 p.p.m. with tuning steps of 25 kHz, 20 kHz, or 12.5 kHz. RF output is 5W or 25W. Audio output is 5W (less than 5% distortion) or 3W (less than 3% distortion). It features 1 memory bank with 128 channels and short message functionality. Power requirements are 13.6V DC ±15%. Current drain is 2A max in RX and 8A max in TX. Dimensions are 43 × 152 × 125 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 25 / 20 / 12.5 kHz
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
400-470 / 450-500 / 350-400 MHz (depending on version)
Modulations: FM
Sensitivity: 0.28 / 0.33 / 0.35 μV
Selectivity: 75 / 70 / 65 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 5W (less than 5% distortion) 3W (less than 3% distortion)

Transmitter

TX-range: 136-174 MHz
400-470 / 450-500 / 350-400 MHz (depending on version)
Modulations: FM
RF-output: 5 / 25 W

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.6V DC ±15%
Current drain RX: 2 A max
TX: 8 A max

Physical

Dimensions (w×h×d): 152 × 43 × 125 mm (5.98 × 1.69 × 4.92 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 201x and 201x in China

Other features

Usage: Commercial / Land mobile communication
Features + options: Short message
Accessories: -
RigReference ID: 5636
MPN: HYTERA-TM-000610
