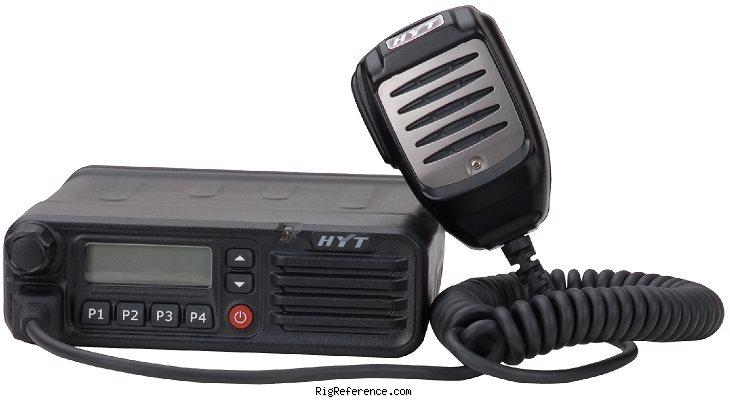

Hytera TM-628H

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Hytera TM-628H is a Mobile VHF/UHF Transceiver. It covers 136-174 MHz and 400-470 MHz for both receive and transmit. Frequency stability is ± 2.5 p.p.m. with tuning steps of 25 / 20 / 12.5 kHz. RF output is 50 / 45 W max. Audio output is 5W (less than 5% distortion) or 3W (less than 3% distortion). It features 1 memory bank with 128 channels. Power requirements are 13.6V DC ±15%. Current drain is 2 A max in receive and 12 A max in transmit. Dimensions are 48 × 154 × 161 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 25 / 20 / 12.5 kHz
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
400-470 MHz
Modulations: FM
Sensitivity: 0.28 μV
Selectivity: 75 / 65 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 5W (less than 5% distortion) 3W (less than 3% distortion)

Transmitter

TX-range: 136-174 MHz
400-470 MHz
Modulations: FM
RF-output: 50 / 45 W max

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.6V DC ±15%
Current drain RX: 2 A max
TX: 12 A max

Physical

Dimensions (w×h×d): 154 × 48 × 161 mm (6.06 × 1.89 × 6.34 in)
Weight: 1.23 kg (2.7 lbs)
Form factor: Mobile
Manufactured: Between 201x and 201x in China

Other features

Usage: Commercial / Land mobile communication
Features + options: -
Accessories: -
RigReference ID: 5637
MPN: HYTERA-TM-000628H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hytera TM-628H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Hytera TM-628H is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
