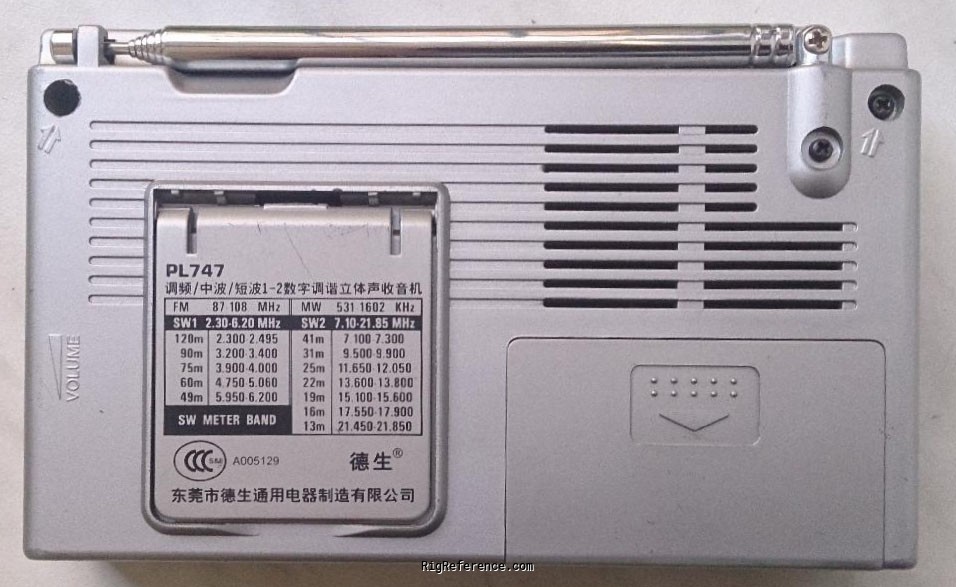

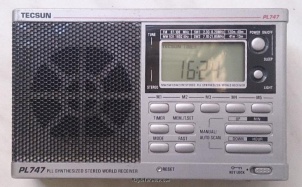

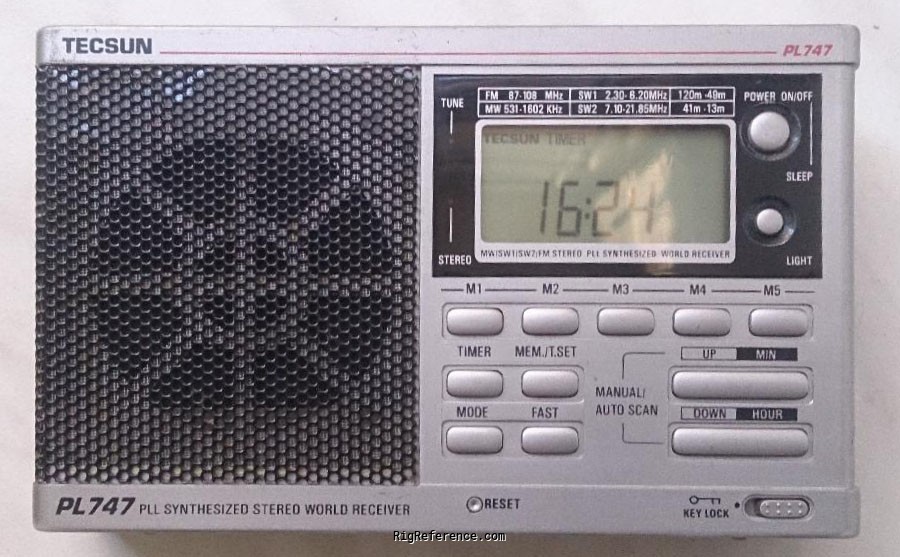

Tecsun PL747

Portable HF/VHF Receiver

Specs Manuals (0) Reviews (1) Prices (1) Compare

The Tecsun PL747 is a portable receiver covering FM 87.5-108 MHz, MW 531-1602 kHz, SW1 2.300-6.200 MHz and SW2 7.100-21.850 MHz. It features a PLL receiver system with 1 memory bank and 20 memory channels. Audio output is via a ф57mm 16Ω 0.3W speaker. The radio requires 4.5 V DC power from 3×AA batteries and weighs 200 gr (excl. batteries). Dimensions are 85 × 140 × 30 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 20 channels in 1 bank(s)

Receiver

RX-range: FM 87.5-108 MHz
MW 531-1602 kHz
SW1 2.300-6.200 MHz
SW2 7.100-21.850 MHz
Modulations: AM FM SSB
Sensitivity: FM < 10 μV
MW < 3 mV/m
SW < 50 μV
Selectivity: > 20 dB
Filters: ?
Receiver system: PLL
IF-frequencies: ?
Image rejection: ?
Audio output: ф57mm 16Ω 0.3W

Connections

Antenna: Built-in telescopic
Impedance: 50Ω
Other: -

Electrical

Power requirements: 4.5 V DC / 3×AA batteries
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 140 × 85 × 30 mm (5.51 × 3.35 × 1.18 in)
Weight: 200 gr (7.1 oz) excl. batteries
Form factor: Portable
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Clock
Alarm
Sleep timer
Accessories: -
RigReference ID: 5652
MPN: TECSUN-PL000747

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Rating	Title	Submitted
	super radio	6 years ago by g-shock

View all Tecsun PL747 reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tecsun PL747. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Tecsun PL747 in Good condition is around:

GBP 20

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2005	GBP 30.00	New / Mint	g-shock
