STAMPFL QSD-DSP RX

Mobile Shortwave Receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

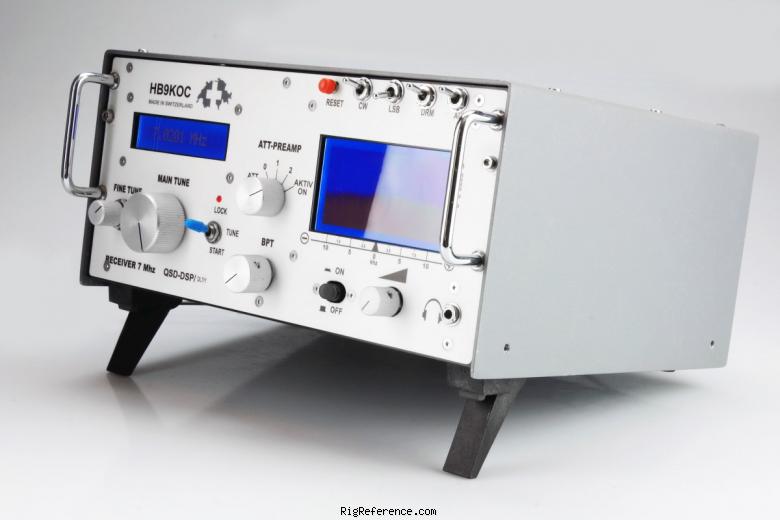

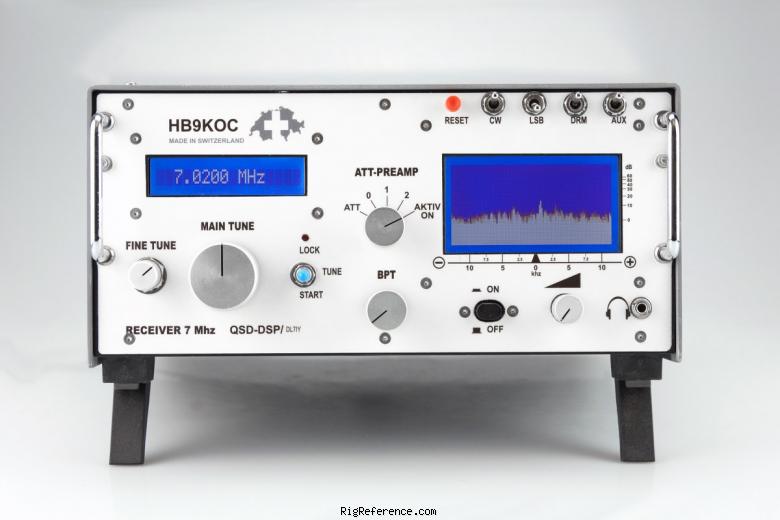

The STAMPFL QSD-DSP RX is a mobile receiver covering 40 m (7 MHz). It features a DSP receiver system, with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. Features include bandpass tuning, PLL Synthesizer (MC145151) Premix, FFT Analyzer (Atmega 8), and a 64 × 128 pixels display. The receiver weighs 3 kg and has dimensions of 120 × 240 × 210 mm.

General characteristics

HAM bands: 40m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 40 m (7 MHz)
Modulations: CW USB LSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: DSP
IF-frequencies: 1st: 10.7 MHz
2nd: 455 kHz
Image rejection: ?
Audio output: ?

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: ?
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 240 × 120 × 210 mm (9.45 × 4.72 × 8.27 in)
Weight: 3.00 kg (6.6 lbs)
Form factor: Mobile
Manufactured: Between 2005 and 20xx in Switzerland

Other features

Usage: Amateur / Ham radio operators
Features + options: Bandpass tuning
PLL Synthesizer (MC145151) Premix
FFT Analyzer (Atmega 8)
64 × 128 pixels display
Accessories: -
RigReference ID: 5681
MPN: STAMPFL-QSD-DSP-RX
