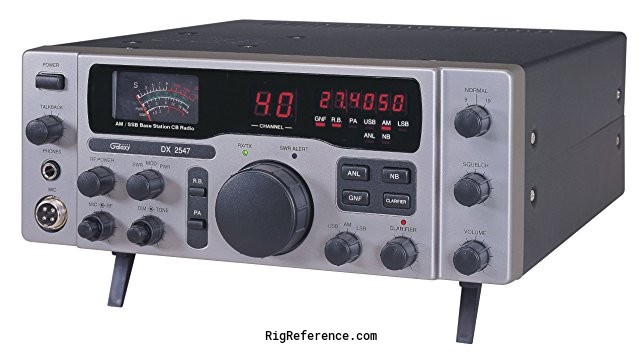

Galaxy DX-2547

Base Station CB Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

The Galaxy DX-2547 is a base station transceiver. It covers 26.695-27.845 MHz for both receive and transmit. Frequency stability is 0.001%. Tuning steps are channelized. The IF frequencies are 1st: 10.695 MHz and 2nd: 455 kHz. Image rejection is -50 dB. RF output power is 4 W AM and 12 W PEP SSB. Audio output is 2.5W @ 10% THD. It features 1 memory bank with 40 channels. Power requirements are Mains / 13.8 V DC. Current drain is 1 A max in receive and 3.5 A max in transmit. Dimensions are 135 × 285 × 342 mm.

General characteristics

HAM bands: 11m (CB)
Frequency stability: 0.001%
Tuning steps: Channelized
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 26.695-27.845 MHz
Modulations: AM SSB
Sensitivity: < 0.5 µV / < 0.15 µV for 10 dB S/N (AM/ SSB)
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: 1st: 10.695 MHz
2nd: 455 kHz
Image rejection: -50 dB
Audio output: 2.5W @ 10% THD

Transmitter

TX-range: 26.695-27.845 MHz
Modulations: AM SSB
RF-output: AM: 4 W / SSB: 12 W PEP

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains / 13.8 V DC
Current drain RX: 1 A max
TX: 3.5 A max

Physical

Dimensions (w×h×d): 285 × 135 × 342 mm (11.22 × 5.31 × 13.46 in)
Weight: 5.40 kg (11.9 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx

Other features

Usage: Citizen Band (27Mc)
Features + options: -
Accessories: -
RigReference ID: 5736
MPN: GALAXY-DX-002547

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Galaxy DX-2547 User Manual PDF - 464.8 kB, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Galaxy DX-2547. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Galaxy DX-2547 is around:

USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
