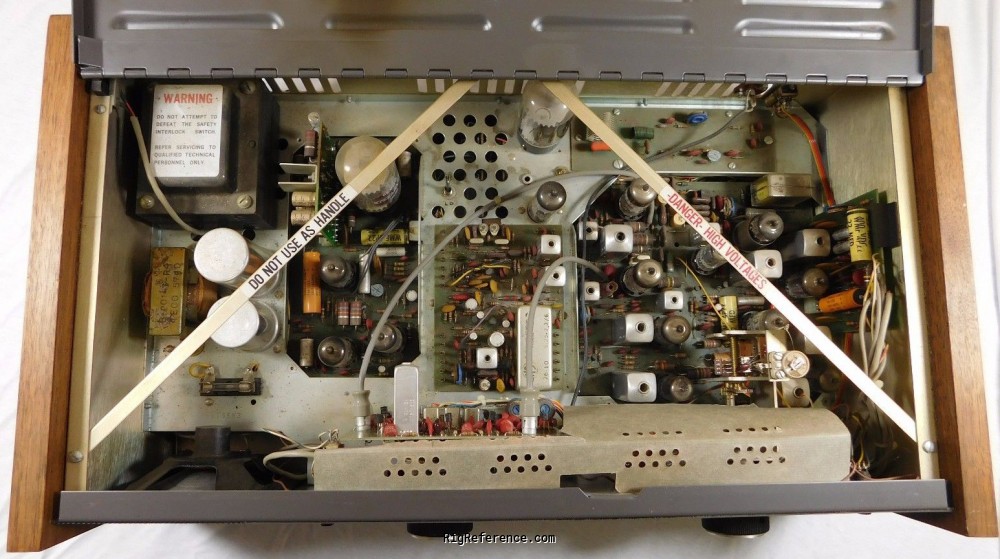

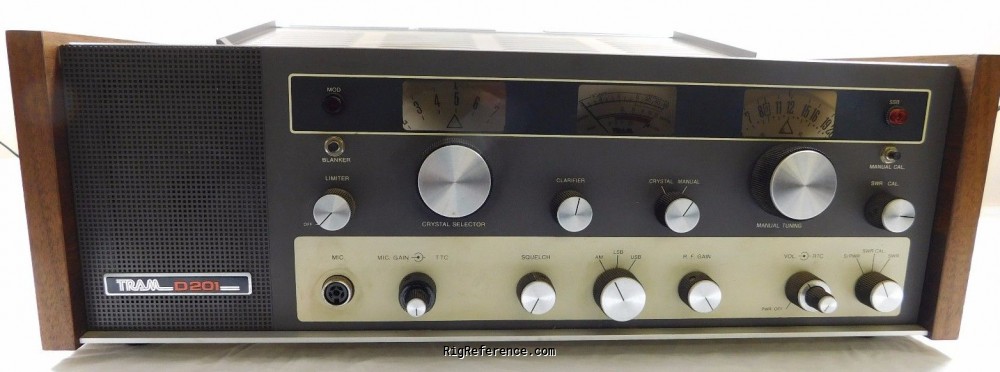

This rig was considered the Lincoln Town Car of CB radios. It cost a hefty 750 US dollars in the 1970's. Early versions of this rig were made using point-point hand wiring and used mostly tubes, except for the oscillator and support circuits, which were solid state. Later versions used PC circuit boards and were made in Mexico. Also available with 40 channels as the Tram D201A.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 23 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.405 MHz
- Modulations
- AM USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 26.965-27.405 MHz
- Modulations
- AM USB LSB
- RF-output
- 4 W
Connections
- Antenna
- SO-239
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 197x and 197x in USA
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5847
- MPN
- TRAM-D000201
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
