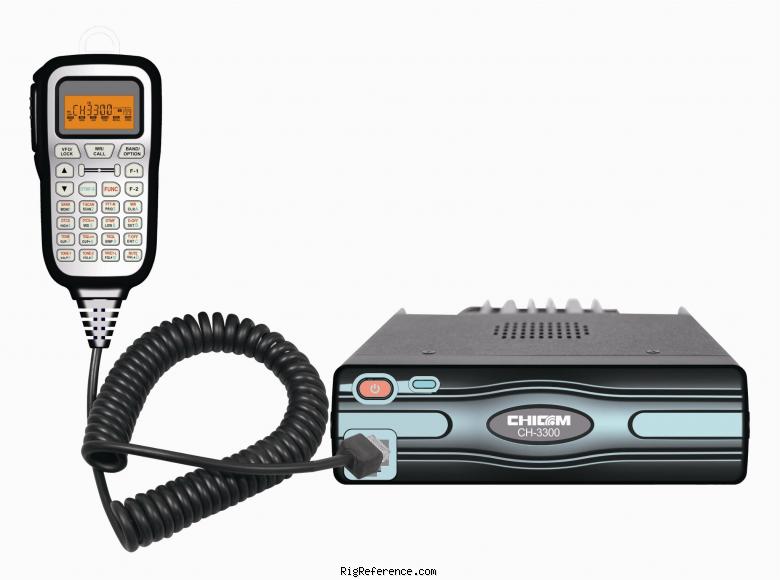

Chicom CH-3300H

Amateur Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Chicom CH-3300H is a 136-174 MHz transceiver. It features a double conversion superheterodyne receiver system with IF frequencies of 46.35MHz / 450kHz. The RF output power is selectable at 5, 10, 25 or 65 W. Audio output is 4.5W. This transceiver has 1 memory bank with 207 channels. It requires 13.8 V DC ±15%. Current drain in receive mode is 0.4 ~ 1.5 A and 11 A max in transmit mode. Dimensions are 40 × 140 × 162 mm.

General characteristics

HAM bands: ?
Frequency stability: ± 3 p.p.m.
Tuning steps: ?
Memories: 207 channels in 1 bank(s)

Receiver

RX-range: 136-174 MHz
Modulations: FM N-FM
Sensitivity: ≤ 0.18μV (12dB SINAD)
Selectivity: Wide
6 kHz @ -6 dB
14 kHz @ -60 dB
Narrow
3 kHz @ -6 dB
9 kHz @ -60 dB
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: 46.35MHz / 450kHz
Image rejection: ?
Audio output: 4.5W typ. (10% dist. 4Ω load)

Transmitter

TX-range: 136-174 MHz
Modulations: FM N-FM
RF-output: 5 / 10 / 25 / 65 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC ±15%
Current drain RX: 0.4 ~ 1.5 A
TX: 11 A max

Physical

Dimensions (w×h×d): 140 × 40 × 162 mm (5.51 × 1.57 × 6.38 in)
Weight: 1.10 kg (2.4 lbs)
Form factor: Mobile
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 5914
MPN: CHICOM-CH-003300H
