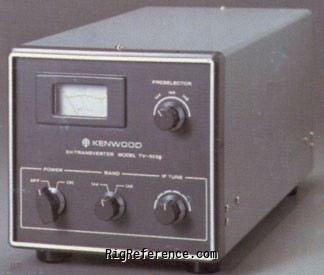

The Kenwood TV-502 is a 10 to 2 meter transverter for the Kenwood TS-520S series. It operates from 144 to 146 MHz with 16 watts input.

Frequency range

RX-range
28.0-29.7 <- 144-145.7 MHz
TX-range
28.0-29.7 -> 144-145.7 MHz
HAM bands
2m
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
All mode
Sensitivity
1 µV (10 dB S/N)
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
All mode
RF-Output
SSB/CW: 16 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12-16 V DC or mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
168 × 153 × 336 mm (6.61 × 6.02 × 13.23 in)
Weight
5.20 kg (11.5 lbs)
Form factor
Base Station
Manufactured
Between 197x and 197x in Japan
MPN
KENWOOD-TV-000502

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
Built-in speaker
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.
