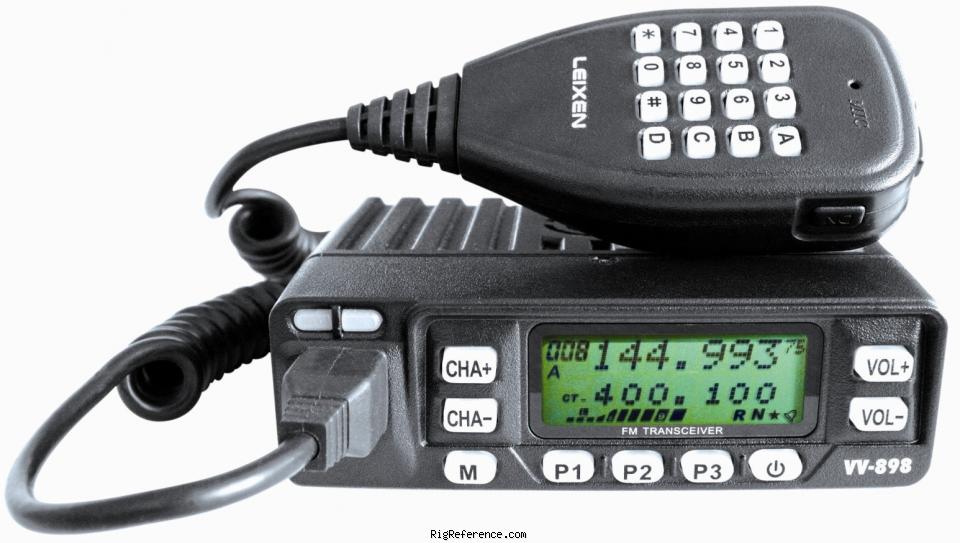

Leixen VV-898

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

2.5 / 5 / 6.25 / 10 / /12.5 / 25 kHz

Memories

199 channels in 1 bank(s)

Receiver

RX-range

136-174 / 400-470 / 245 MHz
87.5-108 MHz

Modulations

N-FM   W-FM

Sensitivity

< 0.18 μV

Selectivity

25 / 12.5 kHz

Filters

25 / 12.5 kHz

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

≥ 400 mW

Transmitter

TX-range

136-174 / 400-470 MHz

Modulations

N-FM   W-FM

RF-output

4 / 10 W

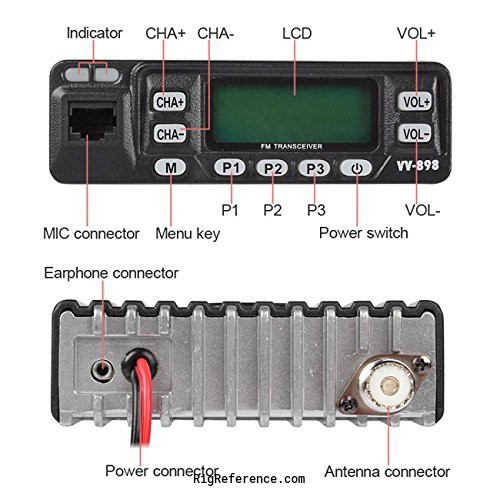

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

30-78 mA

TX

1 / 1.8 A

Physical

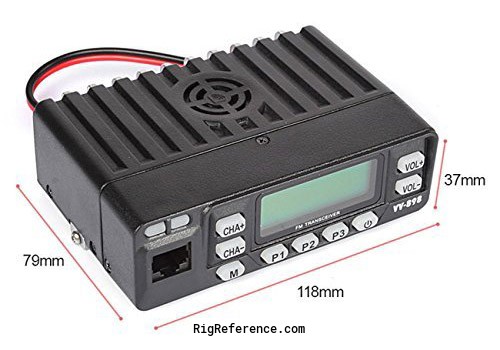

Dimensions (w×h×d)

120 × 85 × 40 mm (4.72 × 3.35 × 1.57 in)

Weight

315 gr (11.1 oz)

Form factor

Mobile

Manufactured

Between 2014 and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual Reception / Dual Display
Voice Companding and Scrambler
APO(Auto Power Off)
TOT(Time-out timer)
Font Set(Big/Small)
VOX(Level adjustable)

Accessories

-

RigReference ID

6006

MPN

LEIXEN-VV-000898

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Leixen VV-898. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Leixen VV-898 in Good condition is around:

• USD 50 ~ USD 109
• EUR 60
