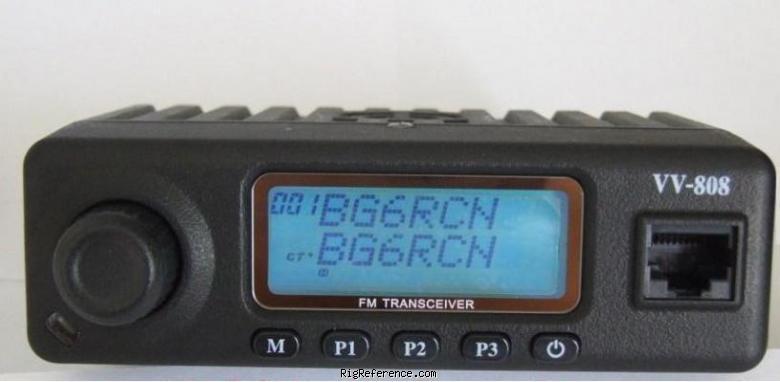

Mobile (vehicle mount) VHF transceiver, suitable for the 2 meter range. Also available as 70cm version as the Leixen VV-808U.

General characteristics

HAM bands
?
Frequency stability
± 2.5 p.p.m.
Tuning steps
5 / 6.25 / 10 / 12.5 / 25 kHz
Memories
199 channels in 1 bank(s)

Receiver

RX-range
136-174 MHz
Modulations
FM   W-FM
Sensitivity
?
Selectivity
25 / 12.5 kHz
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
400 mW into 8 ohms

Transmitter

TX-range
136-174 MHz
Modulations
FM   W-FM
RF-output
15 W

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
1.8 A

Physical

Dimensions (w×h×d)
120 × 40 × 90 mm (4.72 × 1.57 × 3.54 in)
Weight
275 gr (9.7 oz)
Form factor
Mobile
Manufactured
Between 201x and 20xx in China

Other features

Usage
Amateur / Ham radio operators
Features + options
Alpha tags display
Big/small fonts
VOX
DTMF
Accessories
-
RigReference ID
6008
MPN
LEIXEN-VV-000808V

Manuals, diagrams and brochures

Leixen VV-808 User manual.pdf PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Leixen VV-808V. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Leixen VV-808V is around:

  • USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year Historic price Condition Submitted by
