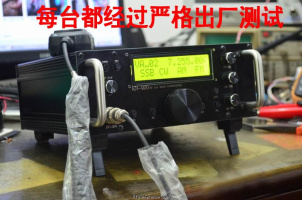

Chinese KN-920 Base Station HF Transceiver

 (3.6/5)  Add a story   View all stories (1)   Add to my shack



Price when new in 2013: USD 346,-

Frequency range

RX-range
30 kHz - 29.999 MHz
TX-range
80-10 m
HAM bands
80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Stability
-
Tuning steps
0.01 / 0.1 / 1 / 10 / 100 kHz
Filters
-

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
CW: 0.2 µV / 10 dB
AM: 1 µV / 10 dB
FM: 0.2 µV
Selectivity
2.4 kHz @ -6 dB
3.6 kHz @ -40 dB
AM: 6 kHz
CW: 200-1200 kHz
Receiver system
Double (AM/CW/SSB) / triple (FM) conversion
IF-frequencies
1st: 45 MHz
2nd: 12 MHz
3rd: 455 kHz (FM-only)
Image rejection
70 dB
Audio output
internal speaker

Transmitter

Modulations
FM   CW   SSB
RF-Output
1-10 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC
Current drain RX
700 mA
TX
4 A

Physical

Dimensions (w×h×d)
230 × 230 × 90 mm (9.06 × 9.06 × 3.54 in)
Weight
3.50 kg (7.7 lbs)
Form factor
Base Station
Manufactured
Between 2013 and 20xx in China
MPN

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
USB interface
LCD display
Built-in keyer
Built-in ATU
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Chinese documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Chinese KN-920. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Chinese KN-920 might be around:

  • USD 399.00
  • EUR 284.00
Price Condition Year User
EUR 346.00 Mint / New 2013 RigReference
USD 400.00 Mint / New 2018 RigReference

To submit a price, please login or register an account.

Stories & reviews

KN-920 HF Radio

Chinese KN-920, Base Station HF Transceiver

I purchased the KN-920 from Aliexpress and shipping was 5 days from China. Rig arrived with bubble wrap around it and rolled cardboard in the box, light packaging for the distance it had to travel but survived the trip without any incidents. The radio was abit bigger than I had thought it would be but all silk screening was perfect and cabinet made of light aluminum, with handles on the front. Nice big green display very easy to read. USB port on back (unknown function), tuning knob on front and various menu buttons. Powered the rig on and played with menus and wrote down all factory preset settings and then found other menus and functions. The radio appears to very prone to any local noise depending on antenna used. Transmits on USB,LSB,FM and CW and receive only in AM. Transmits a full 10 watts on max setting on all ham bands plus WARC bands. Lots of birdies though on all bands, will make note of where teh birdies are in a later review. Made many qso's on CW but have not tried any on SSB to this point. However I now have had an issue with the finals shorting out and needing to be replaced, at the same time some of the trace also burnt up, the finals are IRF530's and should actually just ride along at 10 watts continuous operation with no effort. Communications with the seller are not the greatest and communication with builder are non-existant. No offers for any type of refund or repair that would be feasable for both sides have been made. The radio itself was operating well on CW, but would I buy another one again, NO. There are better radios out there on the market. I am just in the process of replacing the finals and see what happens after that. Fred VE3FAL

Written by ve3fal on Sep 19, 2013

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2013
USD 0.00
