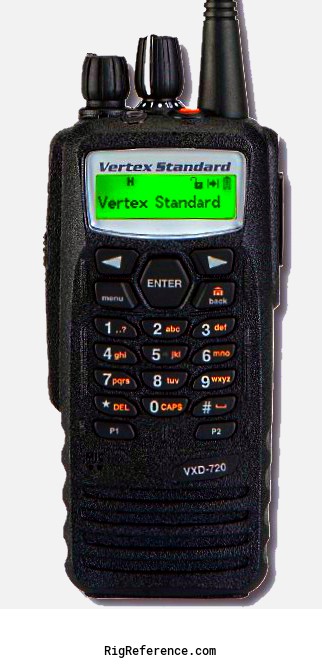

The Vertex Standard VXD-720 is a dual band FM transceiver. It covers 134-174 / 403-470 / 450-512 MHz for both transmit and receive. Frequency stability is ± 0.5 p.p.m. with tuning steps of 12.5 / 20 / 25 kHz. The radio has an image rejection of 70 dB. RF output is VHF: 1/45 W, UHF: 1/40 W. Audio output is 3 W internal and 13 W external. It features 1 memory bank with 512 channels. Power requirements are 13.8 V DC ± 20%. Current drain in receive mode is 810 mA, 2A max. Current drain in transmit mode is 14.5 A max. Dimensions are 175 × 51 × 206 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 0.5 p.p.m.
- Tuning steps
- 12.5 / 20 / 25 kHz
- Memories
- 512 channels in 1 bank(s)
Receiver
- RX-range
- 134-174 / 403-470 / 450-512 MHz
- Modulations
- FM DMR
- Sensitivity
- Analogue 12dB SINAD: 0.3 μV 0.22 μV typical
Digital: 5% BER: 0.3 μV - Selectivity
- TIA603:
VHF: 65 dB @ 12.5 kHz, 80 dB @ 25 kHz
UHF: 65 dB @ 12.5 kHz, 75 dB @ 25 kHz
TIA603C:
VHF: 50 dB @ 12.5 kHz, 80 dB @ 25 kHz
UHF: 50 dB @ 12.5 kHz, 75 dB @ 25 kHz - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 70 dB
- Audio output
- 3 W internal, 13 W external
Transmitter
- TX-range
- 134-174 / 403-470 / 450-512 MHz
- Modulations
- FM DMR
- RF-output
- VHF: 1/45 W, UHF: 1/40 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ± 20%
- Current drain RX
- 810 mA, 2A max
- TX
- 14.5 A max
Physical
- Dimensions (w×h×d)
- 51 × 175 × 206 mm (2.01 × 6.89 × 8.11 in)
- Weight
- 1.80 kg (4.0 lbs)
- Form factor
- Handheld
- Manufactured
- Between 2013 and 201x
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6042
- MPN
- VERTEX-STANDARD-VXD-000720
