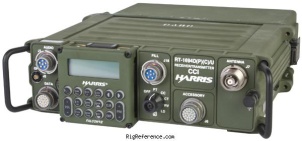

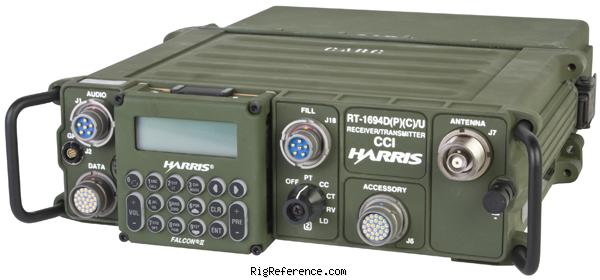

Harris AN/PRC-150(C)

HF/VHF Tactical radio

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Harris AN/PRC-150(C) is a HF/VHF tactical transceiver. It covers 1.6-60 MHz for both receive and transmit. The radio features image rejection of ≥ 80 dB. RF output is selectable at 1, 5, or 20 watts PEP (-1/+2 dB), or 1, 5, or 10 watts FM. Audio output is 15 mW at 1000 ohm to external handset. It has 75 memory channels and meets MIL-STD-810G standards. The radio weighs 4.7 kg without batteries. Dimensions are 81 × 267 × 343 mm with battery case.

General characteristics

HAM bands: ?
Frequency stability: ± 1 × 10^-6
Tuning steps: ?
Memories: 75 channels in bank(s)

Receiver

RX-range: 1.6-60 MHz
Modulations: AM FM CW USB LSB DSB
Sensitivity: SSB: –113 dBm (0.5 µv) minimum for 10 dB sinad
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ≥ 80 dB
Audio output: 15 mW at 1000 ohm to external handset

Transmitter

TX-range: 1.6-60 MHz
Modulations: AM FM CW USB LSB DSB
RF-output: 1, 5, 20 watts PeP, -1/+2 dB (1, 5, 10 watts fm)

Connections

Antenna: BNC
Impedance: 50Ω
Other: -

Electrical

Power requirements: 21.5-32 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 267 × 81 × 343 mm (10.51 × 3.19 × 13.50 in) with battery case
Weight: 4.70 kg (10.4 lbs) without batteries
Form factor: Mobile
Manufactured: Between 20xx and 20xx in USA

Other features

Usage: Military communication
Features + options: MIL-STD-810G
Accessories: -
RigReference ID: 6047
MPN: HARRIS-AN/PRC-000150(C)
