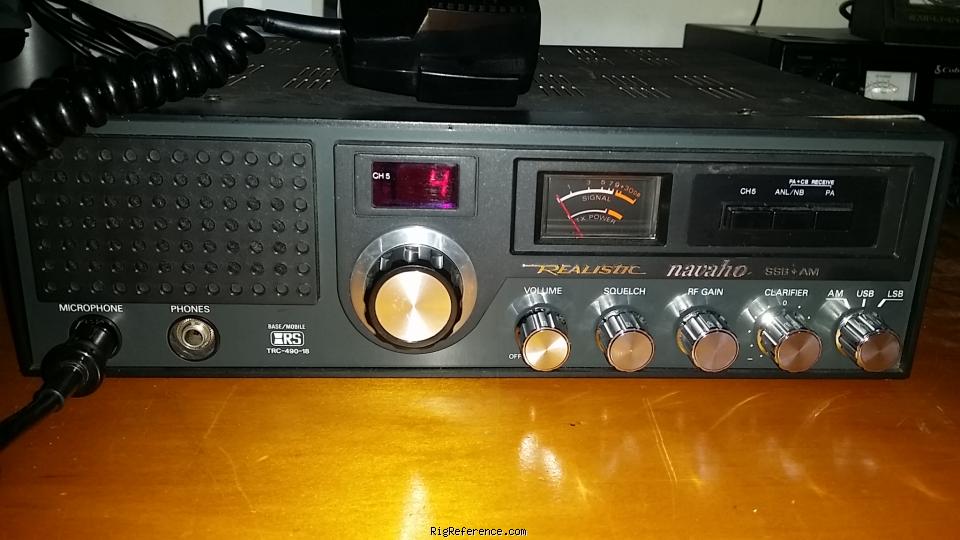

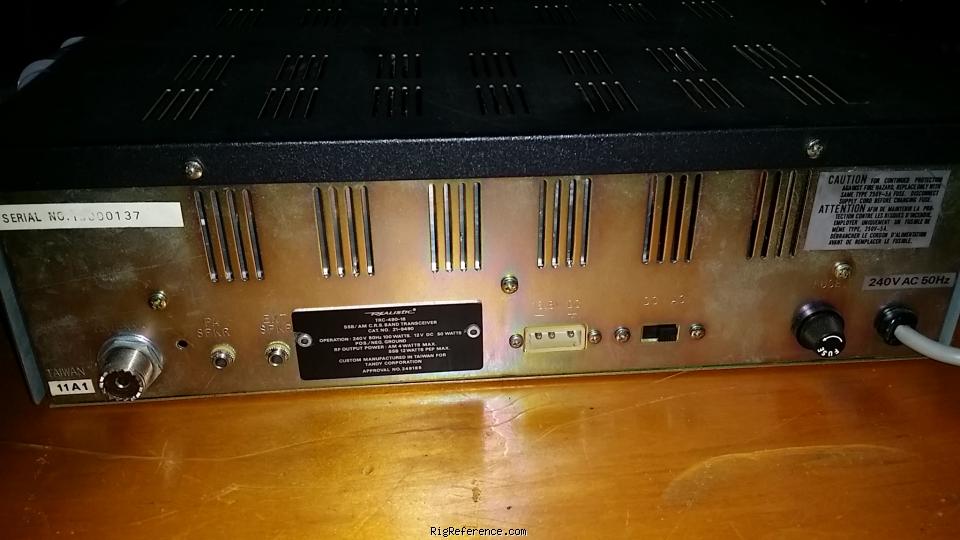

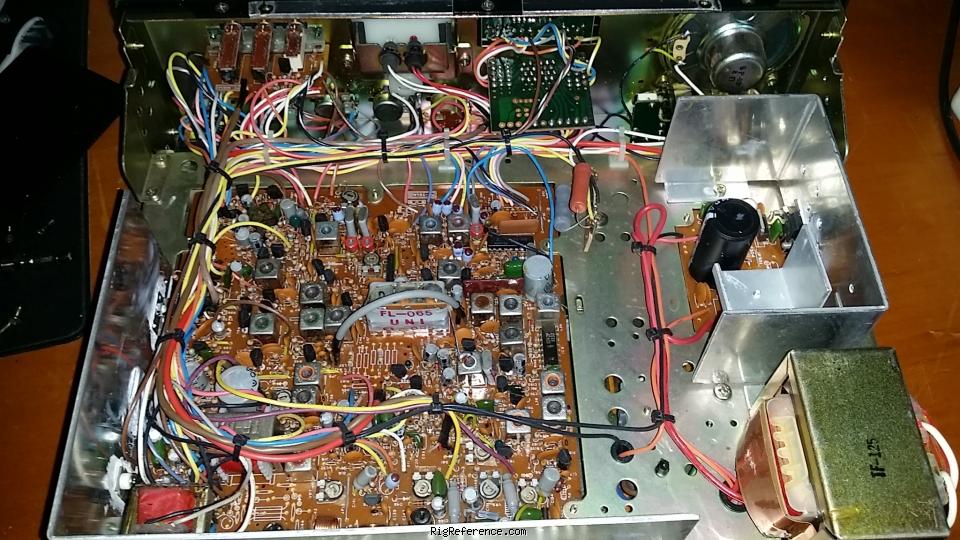

RadioShack / Realistic TRC-490 Desktop Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
26.965-27.405 MHz
TX-range
26.965-27.405 MHz
HAM bands
11m (CB)
Stability
± 135 Hz
Tuning steps
-
Filters
-

Receiver

Modulations
AM   SSB
Sensitivity
AM: 0.5 µV
SSB: 0.25 µV
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
85 dB
Audio output
8 Ohm, 2.5 Watt

Transmitter

Modulations
AM   SSB
RF-Output
AM: 4 W, SSB: 12 W

Connections

Antenna
SO-239
Impedance
52Ω

Electrical

Power requirements
Mains / 12-16 V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
340 × 100 × 290 mm (13.39 × 3.94 × 11.42 in)
Weight
6.50 kg (14.3 lbs)
Form factor
Base Station
Manufactured
Between 197x and 19xx
MPN

Other features

Memories
40 channels in 1 bank(s)
Usage
Citizen Band (27Mc)
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other RadioShack / Realistic documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the RadioShack / Realistic TRC-490. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Price Condition Year User

To submit a price, please login or register an account.

Stories & reviews

Do you know this rig? Tell us something about it!
