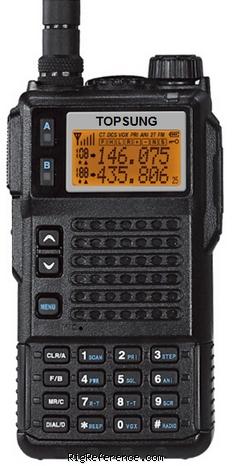

Topsung TS-686

Tri-band 10W transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Topsung TS-686 is a tri-band handheld transceiver covering 136-174 / 350-400 / 400-470 MHz. It has an RF output of 10/5/1 W and features CTCSS/DSC and DTMF. The radio has 1 memory bank with 200 channels. Power requirements are 7.4 V DC, Li-ion Battery 1300mA. Dimensions are 120 × 64 × 34 mm.

General characteristics

HAM bands: ?
Frequency stability: ± 2.5 p.p.m.
Tuning steps: ?
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 136-174 / 350-400 / 400-470 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 136-174 / 350-400 / 400-470 MHz
Modulations: FM
RF-output: 10 / 5 / 1 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4 V DC, Li-ion Battery 1300mA
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 64 × 120 × 34 mm (2.52 × 4.72 × 1.34 in)
Weight: 288 gr (10.2 oz) with belt clip and antenna
Form factor: Handheld
Manufactured: Between 201x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS / DSC
DTMF
Accessories: -
RigReference ID: 6087
MPN: TOPSUNG-TS-000686
