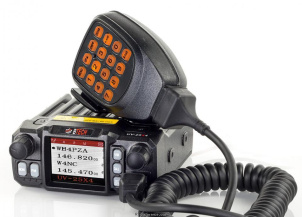

Baofeng UV-25X2 Dual-band analog mobile transceiver

 (0.0/5)  Add a review   View all reviews (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
65-108 / 136-174 / 400-520 MHz
TX-range
136-174 / 400-520 MHz
HAM bands
2m  1.25m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5.0 / 6.25 / 10.0 / 12.5 / 25.0 kHz
Filters
12.5 / 25 kHz

Receiver

Modulations
FM   N-FM
Sensitivity
≤ 0.25 μV (wide band)
≤ 0.35 μV (narrow band)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
2 W @ 10%

Transmitter

Modulations
FM   N-FM
RF-Output
VHF: 10 / 25 W, UHF: 7 / 20 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.6 V DC ±20%
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
98 × 35 × 118 mm (3.86 × 1.38 × 4.65 in)
Weight
408 gr (14.4 oz)
Form factor
Mobile
Manufactured
Between 2017 and 20xx in China
MPN
BAOFENG-UV-000025X2

Other features

Memories
200 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Multi-color LCD Display
CTCSS / DCS
PC programmable
Accessories
-
