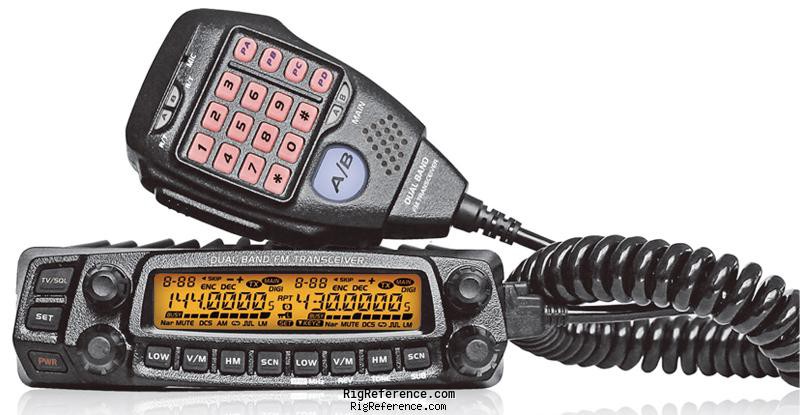

Anytone AT-5888UV III

Mobile dual-band VHF/UHF transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Tri-band version of the Anytone AT-5888UV

General characteristics

HAM bands
2m  1.25m  70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 kHz

Receiver

RX-range
108-134 / 134-174 / 200-260 / 400-490 MHz
Modulations
AM   FM   N-FM
Sensitivity
W-FM ≤ 0.25 μV (12 dB SINAD)
N-FM ≤ 0.35 μV (12 dB SINAD)
Selectivity
12.5 / 25 kHz
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
≥ 60 dB
Audio output
2 W @ 10% THD

Transmitter

TX-range
134-174 / 200-260 / 400-490 MHz
Modulations
FM   N-FM
RF-Output
55 / 10 / 5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC (±15%)
Current drain RX
?
TX
?

Physical

Manufactured
Between 2014 and 20xx in China
Dimensions (w×h×d)
139 × 40 × 212 mm (5.47 × 1.57 × 8.35 in)
Weight
1.14 kg (2.5 lbs)
Form factor
Mobile

Other features

Memories
758 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS/PL
DCS
DTMF
2-tone/5-tone signalling
scrambler
Twin RX (V/U, V/V, U/U configuration)
Accessories
?
MPN
ANYTONE-AT-005888UV-III
