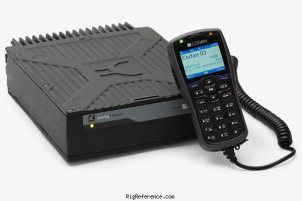

Codan Envoy Mobile HF transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Envoy’s high-resolution colour display with an icon-based menu makes using your HF radio as easy as navigating your smart phone. The handset features a backlit keyset, a one-touch emergency button and can be easily updated to a different language.
Digital Voice allow long range communication over HF bands.
SmartLink allows the rig to be remotely operated from any IP-enabled device.

Frequency range

RX-range
0.250-30 MHz
TX-range
1.6-30 MHz
HAM bands
-
Stability
±0.3 p.p.m. from –30°C to +60°C
Tuning steps
-
Filters
2.4 kHz standard (500 Hz, 2.7 kHz optional)

Receiver

Modulations
AM   CW   USB   LSB   FSK   AFSK
Sensitivity
0.12 µV, –125 dBm for 10 dB SINAD
Selectivity
>70 dB at –1 kHz and +4 kHz ref SCF USB
Receiver system
SDR Processing Architecture: DSP, 456 MHz, 32-bit FPGA, 500,000 gate MCU, ARM9, 300 MHz 32-bit
IF-frequencies
-
Image rejection
>70 dB
Audio output
Less than 3 dB variation from 300 Hz to 3 kHz (with optional 2.7 kHz filter)

Transmitter

Modulations
AM   CW   USB   LSB   FSK   AFSK
RF-Output
125 W PEP ±1 dB (two-tone or voice), user-programmable (low / medium / high)

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
10.8 to 15 V DC (12 V Nominal)
Current drain RX
500 mA (backlight min, audio muted)
TX
12.5 A max

Physical

Dimensions (w×h×d)
210 × 270 × 65 mm (8.27 × 10.63 × 2.56 in) RF-unit
Weight
3.10 kg (6.8 lbs) RF-unit + handset
Form factor
Mobile
Manufactured
Between 201x and 20xx in Australia
MPN
CODRADI013

Other features

Memories
1000 channels in 20 bank(s)
Usage
Commercial / Land mobile communication
Features + options
Up to 500 contact list entries
USB (via Handset or Console)
Serial RS232 (supports NMEA-0183 GPS)
Ethernet (TCP/IP, supports remote control)
Auxiliary GPIO (audio in/out, PTT, RS232) on Envoy™ X2 model
Ingress Protection: IP43, MIL-STD-810G method 510.5
Accessories
-

Manuals, diagrams and brochures

Codan Envoy HF Radio Datasheet submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Codan Envoy. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Codan Envoy might be around:

  • EUR 2892.00
Price Condition Year User
EUR 2897.00 New / Mint 2018 RigReference
