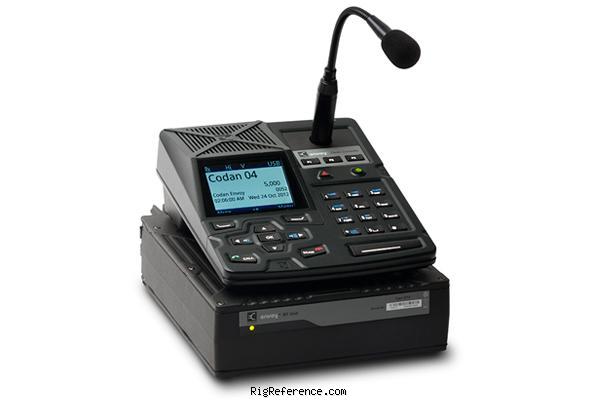

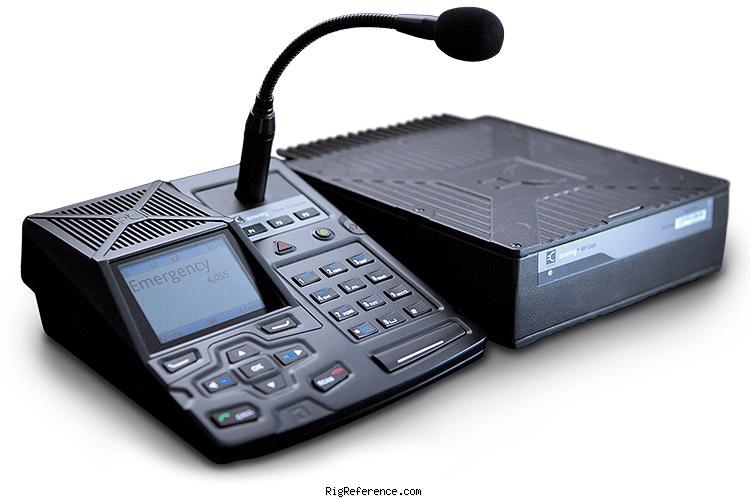

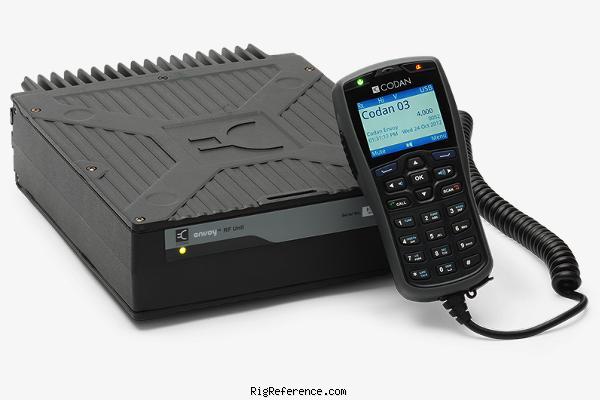

Envoy’s high-resolution colour display with an icon-based menu makes using your HF radio as easy as navigating your smart phone. The handset features a backlit keyset, a one-touch emergency button and can be easily updated to a different language.
Digital Voice allow long range communication over HF bands.
SmartLink allows the rig to be remotely operated from any IP-enabled device.

Frequency range

RX-range
0.250-30 MHz
TX-range
1.6-30 MHz
HAM bands
?
Stability
±0.3 p.p.m. from –30°C to +60°C
Tuning steps
?
Filters
2.4 kHz standard (500 Hz, 2.7 kHz optional)

Receiver

Modulations
AM   CW   USB   LSB   FSK   AFSK
Sensitivity
0.12 µV, –125 dBm for 10 dB SINAD
Selectivity
>70 dB at –1 kHz and +4 kHz ref SCF USB
Receiver system
SDR Processing Architecture: DSP, 456 MHz, 32-bit FPGA, 500,000 gate MCU, ARM9, 300 MHz 32-bit
IF-frequencies
?
Image rejection
>70 dB
Audio output
Less than 3 dB variation from 300 Hz to 3 kHz (with optional 2.7 kHz filter)

Transmitter

Modulations
AM   CW   USB   LSB   FSK   AFSK
RF-Output
125 W PEP ±1 dB (two-tone or voice), user-programmable (low / medium / high)

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
10.8 to 15 V DC (12 V Nominal)
Current drain RX
500 mA (backlight min, audio muted)
TX
12.5 A max

Physical

Dimensions (w×h×d)
210 × 270 × 65 mm (8.27 × 10.63 × 2.56 in) RF-unit
Weight
3.10 kg (6.8 lbs) RF-unit + handset
Form factor
Mobile
Manufactured
Between 201x and 20xx in Australia
MPN
CODRADI013

Other features

Memories
1000 channels in 20 bank(s)
Usage
Commercial / Land mobile communication
Features + options
Up to 500 contact list entries
USB (via Handset or Console)
Serial RS232 (supports NMEA-0183 GPS)
Ethernet (TCP/IP, supports remote control)
Auxiliary GPIO (audio in/out, PTT, RS232) on Envoy™ X2 model
Ingress Protection: IP43, MIL-STD-810G method 510.5
Accessories
?

Manuals, diagrams and brochures

Codan Envoy HF Radio Datasheet submitted by RigReference

Upload relevant documents

Show other documents.
Find the Codan Envoy user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Codan Envoy. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Codan Envoy is around:

  • EUR 2892.00
Year Historic price Condition Submitted by
2018 EUR 2897.00 New / Mint RigReference
