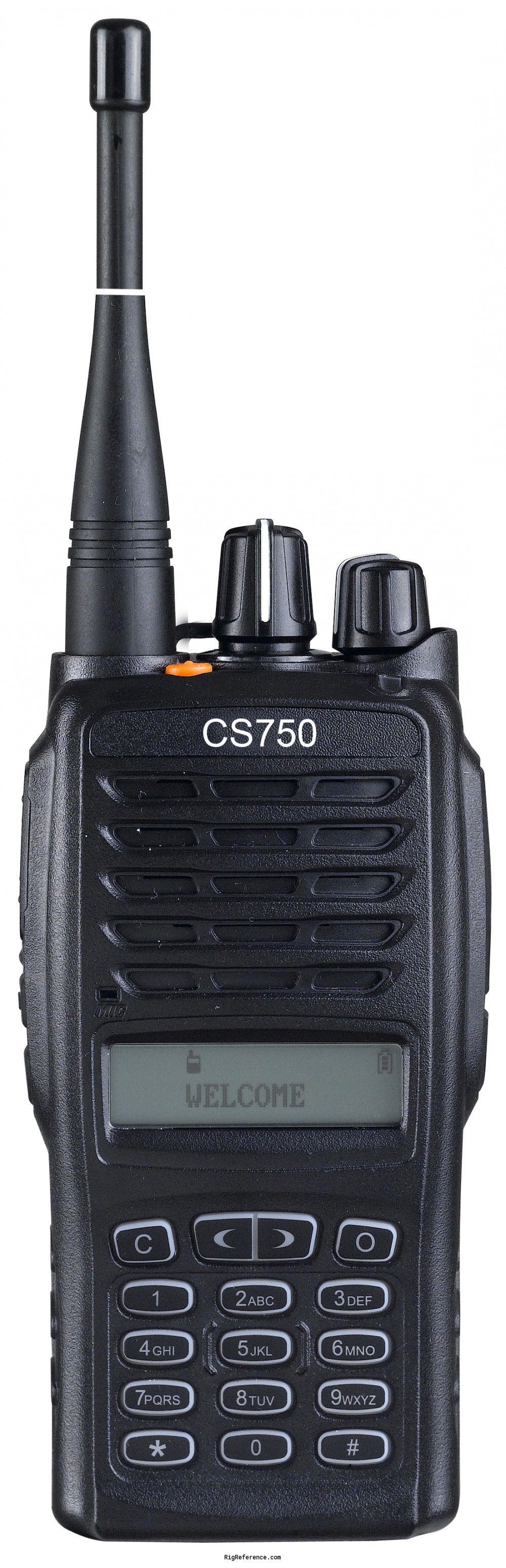

Upgraded version of the Connect Systems Inc CS700, adding more memory.
Fully compatible with Motorola and Hytera DMR radios.

General characteristics

HAM bands
70cm
Frequency stability
1 p.p.m.
Tuning steps
12.5 kHz
Memories
1000 channels in 1 bank(s)

Receiver

RX-range
400-470 MHz
Modulations
FM   DMR
Sensitivity
-117 dBm (Ber 5%) for 12 dB SINAD
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
1 W

Transmitter

TX-range
400-470 MHz
Modulations
FM   DMR
RF-output
4 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.2 V DC (1700 mAh Li-ion)
Current drain RX
400 mA
TX
800-1550 mA

Physical

Dimensions (w×h×d)
113 × 56 × 35 mm (4.45 × 2.20 × 1.38 in)
Weight
275 gr (9.7 oz)
Form factor
Handheld
Manufactured
Between 2014 and 20xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
LCD display
DTMF keypad
ETSI Standard audio encryption
Accessories
-
RigReference ID
6170
MPN
CONNECT-SYSTEMS-INC-CS000750

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Connect Systems Inc CS750. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Connect Systems Inc CS750 is around:

  • USD 139.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2015 USD 170.00 New / Mint Brian
