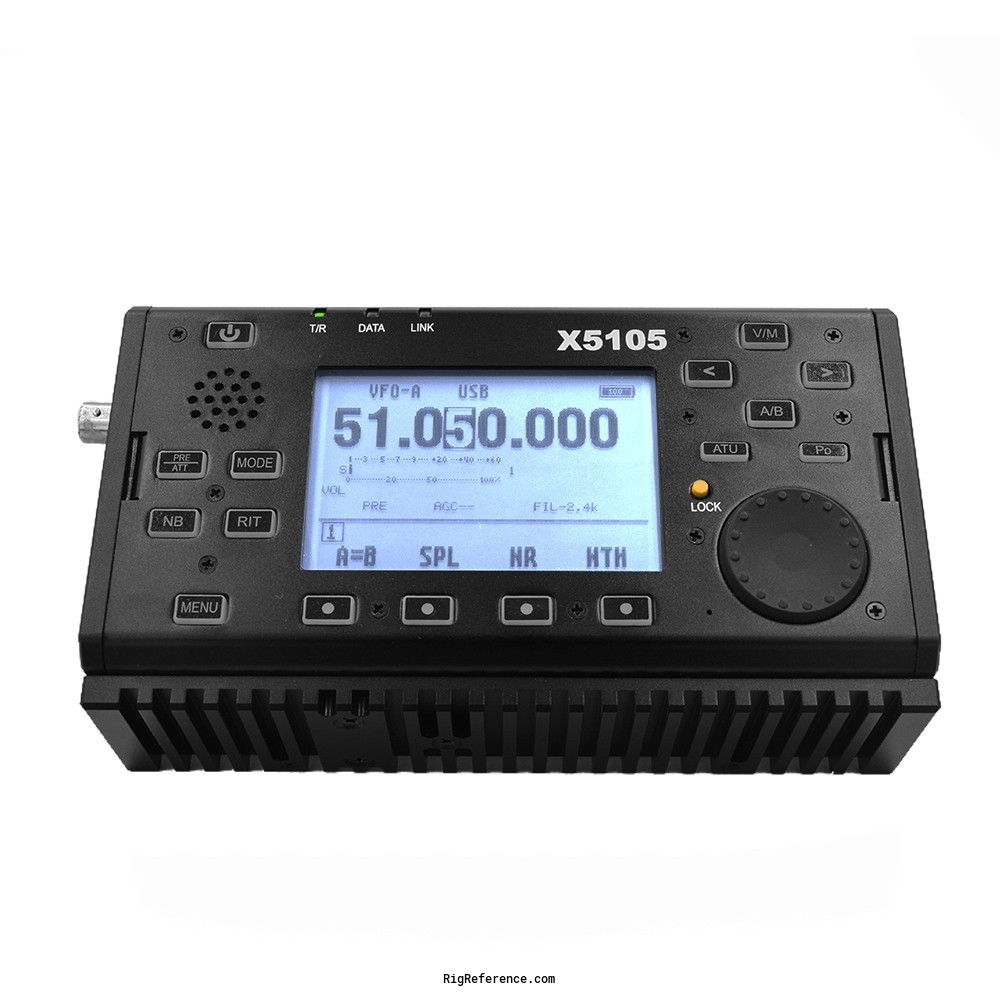

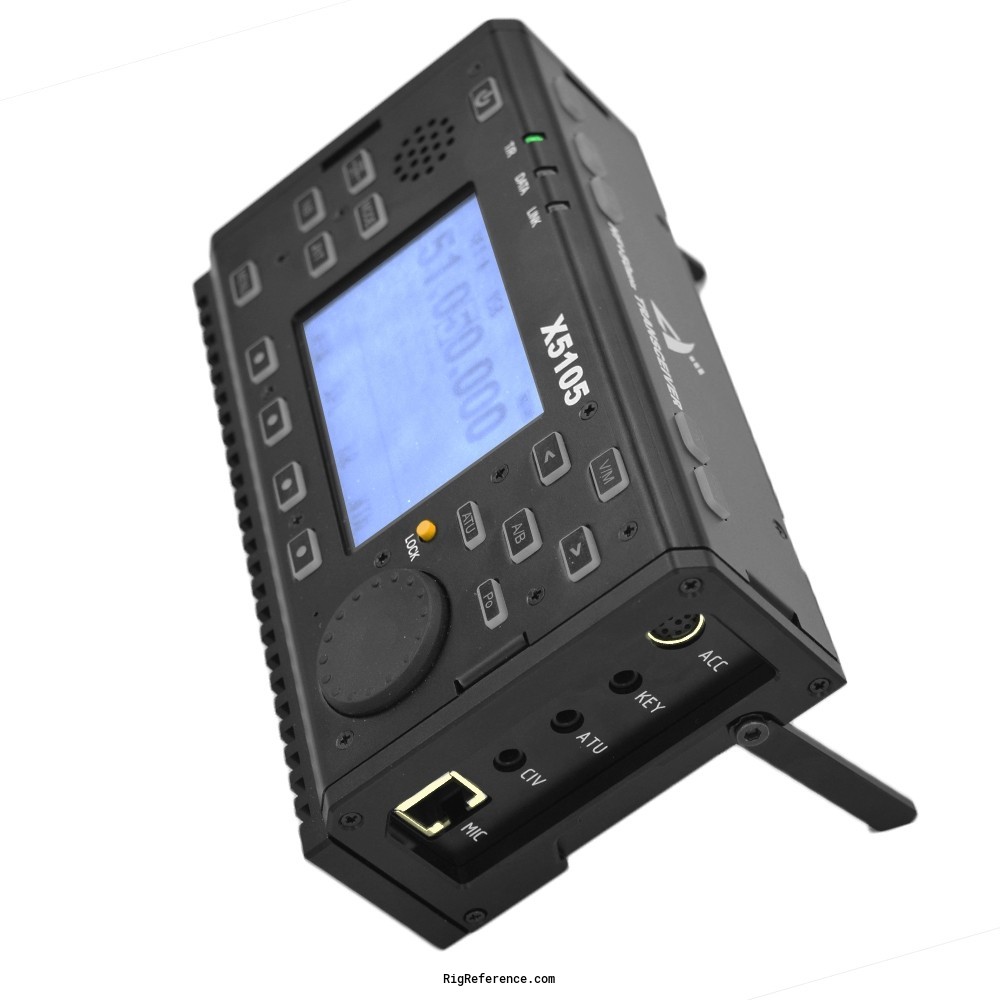

Xiegu X5105 QRP HF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
0.5-55 MHz
TX-range
10-160 m + WARC / 6 m
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Stability
-
Tuning steps
1 kHz
Filters
-

Receiver

Modulations
AM   FM   CW   USB   LSB
Sensitivity
AM (10 dB S/N)
0.5-1.8 MHz: 10 uV
1.8-30 MHz: 2 uV
50-54 MHz: 2 uV
FM (12 dB SINAD)
28-20 MHz: 0.35 uV
50-54 MHz: 0.35 uV
SSB/CW (10 dB S/N)
0.5-1.8 MHz: 10 uV
1.8-30 MHz: 0.25 uV
50-54 MHz: 0.25 uV
Selectivity
AM: 6 kHz (-6 dB), 25 kHz (-60 dB)
FM: 12 kHz (-6 dB), 25 kHz (-60 dB)
SSB: 2.4 kHz (-6 dB), 4.6 kHz (-60 dB)
CW: 500 Hz (-6 dB), 2 kHz (-60 dB)
Receiver system
Double (AM/SSB/CW) /triple (FM) conversion superheterodyne
IF-frequencies
1st IF: 70.455 MHz
2nd IF: 10.695 MHz
3rd IF: 455 kHz
Image rejection
70 dB
Audio output
0.6 W at 10% distortion / 8 ohms

Transmitter

Modulations
AM   FM   CW   USB   LSB
RF-Output
0.5-5 W

Connections

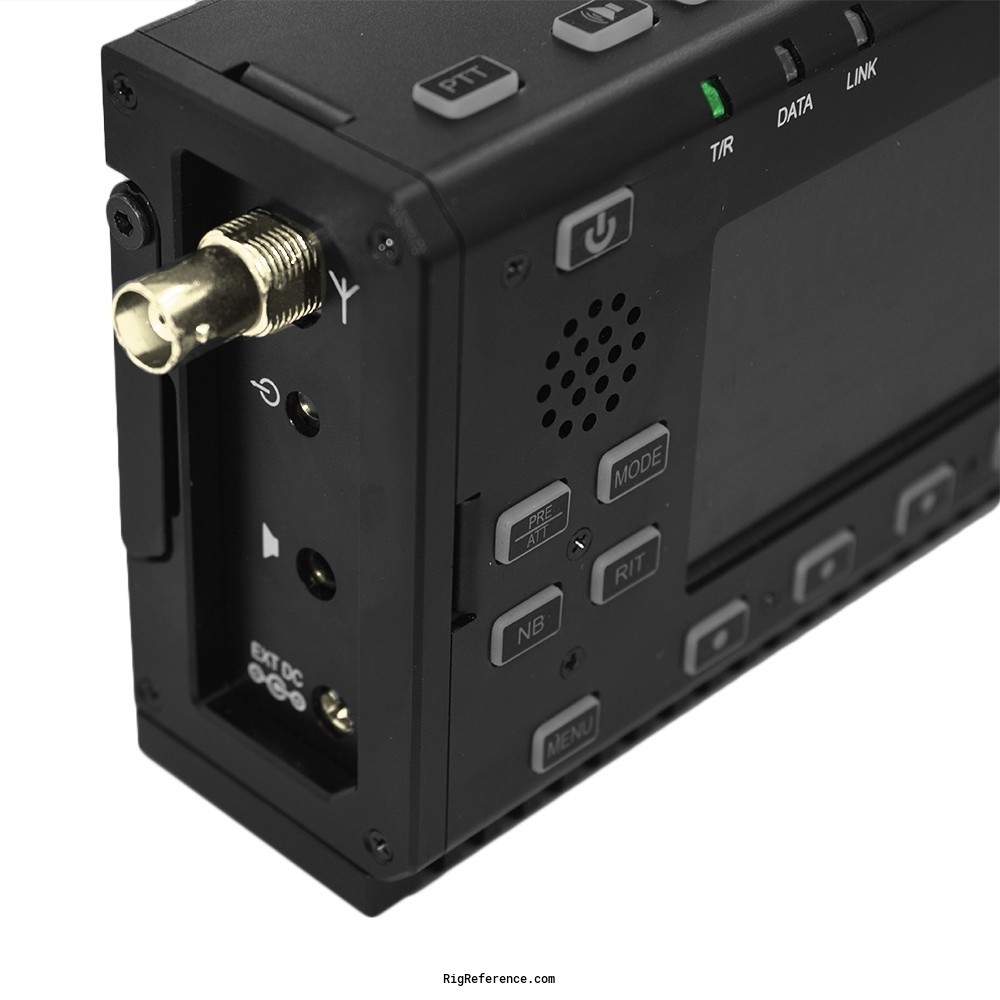

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
9-15 V DC (3800 mAh battery)
Current drain RX
660 mA
TX
2.5 A

Physical

Dimensions (w×h×d)
160 × 99 × 46 mm (6.30 × 3.90 × 1.81 in)
Weight
940 gr (2.1 lbs)
Form factor
Portable
Manufactured
Between 2017 and 20xx in China
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
3.6" LCD
IF output
Built-in auto-ATU
Backlit buttons
Memory keyer
AF-DSP

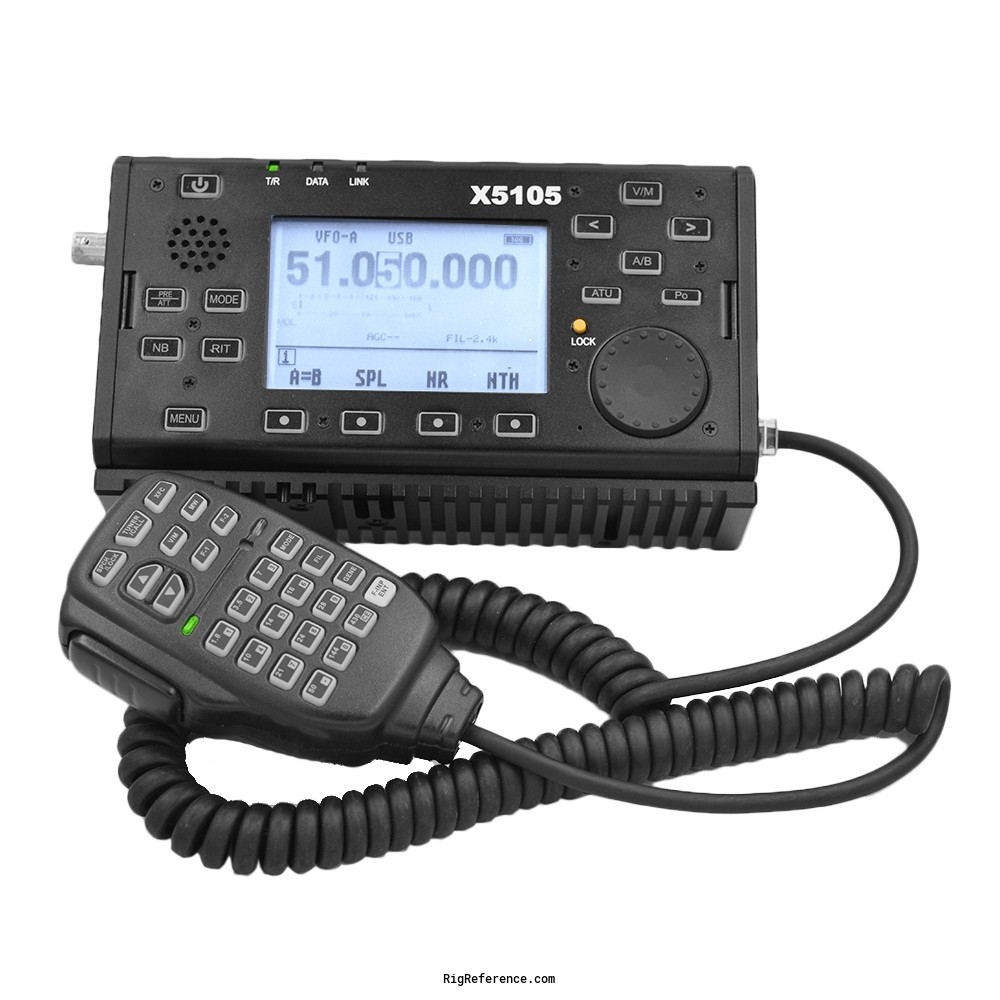

Internal or external microphone
Accessories
-
