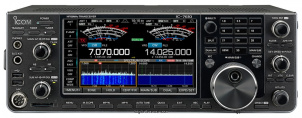

ICOM IC-7610 Base station HF/VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

High-end HF/VHF transceiver with large 7-inch display. DVI-connector for external display (no HDMI). Dual antenna inputs. LAN (ethernet) connector.

Frequency range

RX-range
0.03-60 MHz (0.500 - 29.999, 50.000-54.000 MHz guaranteed)
TX-range
10-160 m + WARC/6 m
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m
Stability
0.05 p.p.m. (0 - 50°C, after warm-up)
Tuning steps
1 Hz
Filters
SSB (BW: 2.4 kHz) CW (BW: 500 Hz) RTTY (BW: 500 Hz) AM (BW: 6 kHz) FM (BW: 15 kHz)

Receiver

Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
SSB/CW (at 10 dB S/N)
0.5–1.799 MHz: -
1.8–29.999 MHz: 0.16 µV
28.0–29.7 MHz: -
50–54 MHz: 0.13 µV

AM (at 10 dB S/N)
0.5–1.799 MHz: 6.3 μV typ.
1.8–29.999 MHz: 2.0 µV
28.0–29.7 MHz: -
50–54 MHz: 1.0 µV

FM (at 12 dB SINAD)
0.5–1.799 MHz: -
1.8–29.999 MHz: -
28.0–29.7 MHz: 0.5 µV
50–54 MHz: 0.32 µV
Selectivity
≤ 2.4 kHz/–6 dB, ≥ 3.6 kHz/–60 dB
≤ 500 Hz/–6 dB, ≥ 700 Hz/–60 dB
≤ 500 Hz/–6 dB, ≥ 700 Hz/–60 dB
≤ 6.0 kHz/–6 dB, ≥ 15 kHz/–60 dB
≤ 12.0 kHz/–6 dB, ≥ 20 kHz/–60 dB
Receiver system
Direct Sampling Superheterodyne
IF-frequencies
12 MHz
Image rejection
≥ 70 dB
Audio output
2.6W at 10% distortion with an 8Ω load

Transmitter

Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-Output
1-100W (AM: 1-25 W)

Connections

Antenna
BNC + SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
3.5 A max
TX
23 A max

Physical

Dimensions (w×h×d)
340 × 117 × 277 mm (13.39 × 4.61 × 10.91 in)
Weight
9.98 kg (22.0 lbs)
Form factor
Base Station
Manufactured
Between 2017 and 201x in Japan
MPN

Other features

Memories
101 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Large 7-inch color display, 800×600 pixels
Built-in automatic antenna tuner
Digital-Up-Conversion (DUC) for clean transmit
Dual receivers, dual spectrum scopes
DVI-D connector for an external display
SD memory card slot for saving data
I/Q signal output
Memo pad stores up to 10 operating frequencies and modes
Quick split function
Quick Dualwatch function
RF gain and squelch control with a knob
RIT and ΔTX variable up to 9.999 kHz
UTC/local clock and timer function
1 Hz pitch tuning and display
Accessories
-
