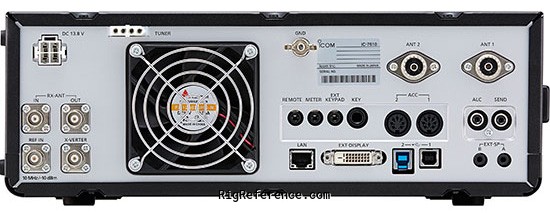

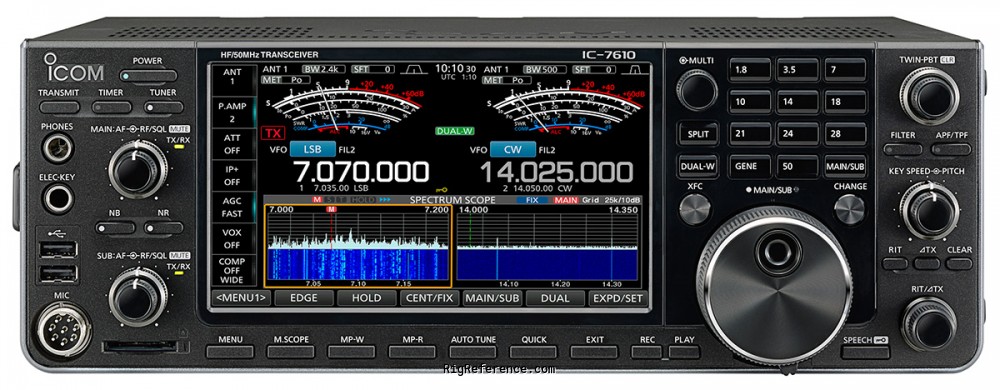

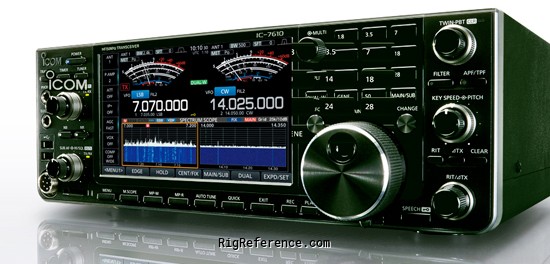

High-end HF/VHF transceiver with large 7-inch display. DVI-connector for external display (no HDMI). Dual antenna inputs. LAN (ethernet) connector.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m
Frequency stability
0.05 p.p.m. (0 - 50°C, after warm-up)
Tuning steps
1 Hz
Memories
101 channels in 1 bank(s)

Receiver

RX-range
0.03-60 MHz (0.500 - 29.999, 50.000-54.000 MHz guaranteed)
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
SSB/CW (at 10 dB S/N)
0.5–1.799 MHz: -
1.8–29.999 MHz: 0.16 µV
28.0–29.7 MHz: -
50–54 MHz: 0.13 µV

AM (at 10 dB S/N)
0.5–1.799 MHz: 6.3 μV typ.
1.8–29.999 MHz: 2.0 µV
28.0–29.7 MHz: -
50–54 MHz: 1.0 µV

FM (at 12 dB SINAD)
0.5–1.799 MHz: -
1.8–29.999 MHz: -
28.0–29.7 MHz: 0.5 µV
50–54 MHz: 0.32 µV
Selectivity
≤ 2.4 kHz/–6 dB, ≥ 3.6 kHz/–60 dB
≤ 500 Hz/–6 dB, ≥ 700 Hz/–60 dB
≤ 500 Hz/–6 dB, ≥ 700 Hz/–60 dB
≤ 6.0 kHz/–6 dB, ≥ 15 kHz/–60 dB
≤ 12.0 kHz/–6 dB, ≥ 20 kHz/–60 dB
Filters
SSB (BW: 2.4 kHz) CW (BW: 500 Hz) RTTY (BW: 500 Hz) AM (BW: 6 kHz) FM (BW: 15 kHz)
Receiver system
Direct Sampling Superheterodyne
IF-frequencies
12 MHz
Image rejection
≥ 70 dB
Audio output
2.6W at 10% distortion with an 8Ω load

Transmitter

TX-range
10-160 m + WARC/6 m
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-output
1-100W (AM: 1-25 W)

Connections

Antenna
BNC + SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
3.5 A max
TX
23 A max

Physical

Dimensions (w×h×d)
340 × 117 × 277 mm (13.39 × 4.61 × 10.91 in)
Weight
9.98 kg (22.0 lbs)
Form factor
Base Station
Manufactured
Between 2017 and 201x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Large 7-inch color display, 800×600 pixels
Built-in automatic antenna tuner
Digital-Up-Conversion (DUC) for clean transmit
Dual receivers, dual spectrum scopes
DVI-D connector for an external display
SD memory card slot for saving data
I/Q signal output
Memo pad stores up to 10 operating frequencies and modes
Quick split function
Quick Dualwatch function
RF gain and squelch control with a knob
RIT and ΔTX variable up to 9.999 kHz
UTC/local clock and timer function
1 Hz pitch tuning and display
Accessories
-
RigReference ID
6187
MPN
ICOM-IC-007610

Manuals, diagrams and brochures

Icom IC-7610 Product Brochure PDF - 984.8 kB, submitted by RigReference
Icom IC-7610 Instruction Manual PDF - 6.65 MB, submitted by RigReference
Icom IC-7610 Advanced Manual PDF - 4.71 MB, submitted by RigReference
Icom IC-7610 Technical Report Vol1 Eng PDF - 1.14 MB, submitted by RigReference
Icom IC-7610 Technical Report Vol2 Eng PDF - 957.9 kB, submitted by RigReference
Icom IC-7610 Technical Report Vol3 Eng PDF - 930.6 kB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-7610. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-7610 is around:

  • USD 3835.00 ~ USD 2995.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 3000.00 New / Mint nd3q
2017 USD 3899.00 New / Mint RigReference
