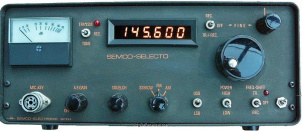

The Semcoset Selecto is a desktop VHF transceiver. It covers 144-146 MHz for both receive and transmit. The rig has an image rejection of 70 dB and frequency stability of ± 300 Hz / hour after warm-up. RF output is SSB: 25 W PEP, FM: 15...25 W, AM: 25 W PEP. It requires 12 V DC power with a current drain of 2 A in receive and 9 A in transmit. Dimensions are 105 × 256 × 273 mm. The transceiver weighs 5.5 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ± 300 Hz / hour after warm-up
- Tuning steps
- Continuous
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- SSB
2.4 kHz @ -3 dB, 4.5 kHz @ -60 dB
AM/FM
15 kHz @ -3 dB, 32 kHz @ -60 dB - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- AM FM CW SSB
- RF-output
- SSB: 25 W PEP, FM: 15...25 W, AM: 25 W PEP
Connections
- Antenna
- SO-239
- Impedance
- 60Ω
- Other
- -
Electrical
- Power requirements
- 12 V DC
- Current drain RX
- 2 A
- TX
- 9 A
Physical
- Dimensions (w×h×d)
- 256 × 105 × 273 mm (10.08 × 4.13 × 10.75 in)
- Weight
- 5.50 kg (12.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in West-Germany
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6189
- MPN
- SEMCOSET-SELECTO
Manuals, diagrams and brochures
- Semco Selecto User manual PDF - 4.11 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Semcoset Selecto. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Semcoset Selecto is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
