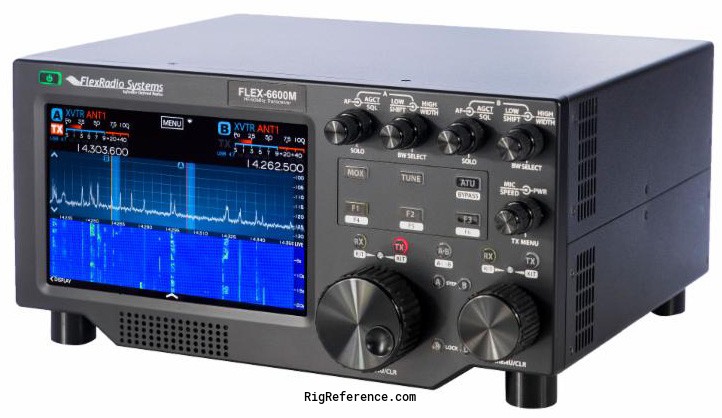

The FlexRadio FLEX-6600M model is the same as the FlexRadio FLEX-6600 except for the front controls and screen This model has four Independent High Performance Receivers.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
0.5 p.p.m. TCXO
Tuning steps
1 Hz
Memories
?

Receiver

RX-range
30 kHz – 54 MHz
Modulations
AM   AM-sync   FM   N-FM   CW   USB   LSB   RTTY   DV
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
SDR, Direct Digital Sampling
IF-frequencies
?
Image rejection
≥ 100 dB
Audio output
1W diagnostic speaker

Transmitter

TX-range
160-6 m
Modulations
AM   AM-sync   FM   N-FM   CW   USB   LSB   RTTY   DV
RF-output
1-100W SSB, CW, FM, RTTY, DIGITAL; 1-25W AM

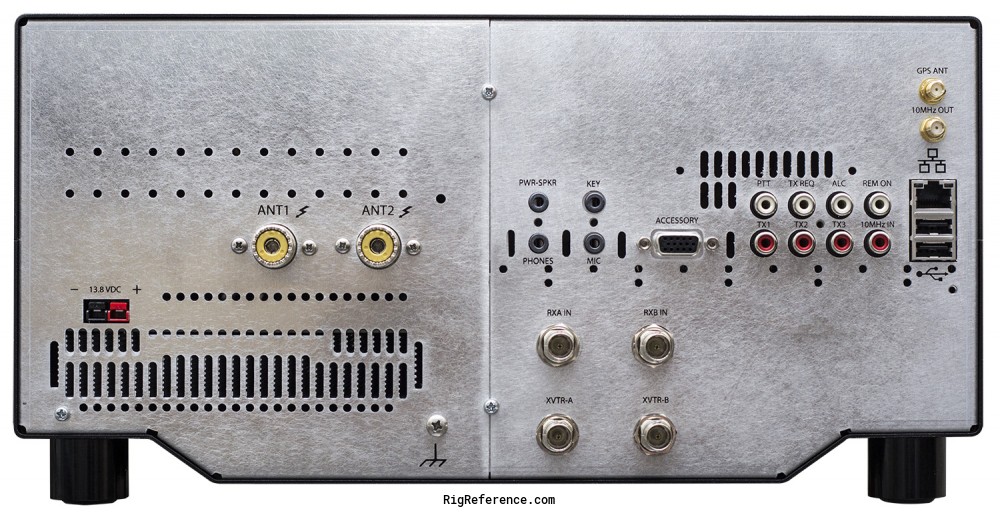

Connections

Antenna
BNC + SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC ± 15%
Current drain RX
2.0 A
TX
23 A

Physical

Dimensions (w×h×d)
350 × 171 × 337 mm (13.78 × 6.73 × 13.27 in)
Weight
?
Form factor
Base Station
Manufactured
Between 2017 and 20xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
8" (20.3cm) touchscreen, 1920×1200 pixels)
HDMI connector for external display
SDR (Software Defined Radio)
Ethernet
Integrated Antenna Tuner
USB 2.0

Optional:
* GPS Disciplined Oscillator; 5x10-12 over 24 hours
* MARS/CAP Coverage Filter Bank
* ThumbDV module for D-Star mode
Accessories
-
RigReference ID
6208
MPN
FLEXRADIO-FLEX-006600M
