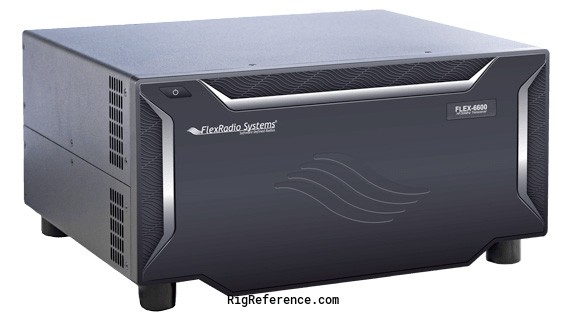

FlexRadio FLEX-6600 SmartSDR transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The FlexRadio FLEX-6600 model is designed for the Ham who wants to operate the radio exclusively as a server from PC, laptop, Maestro, Mac, or iOS clients – whether local or remote. It has no controls on the rigs itself. This model has four Independent High Performance Receivers. Also check out the FlexRadio FLEX-6600M which adds controls and a touchscreen.

Frequency range

RX-range
30 kHz – 54 MHz
TX-range
160-6 m
HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Stability
0.5 p.p.m. TCXO
Tuning steps
1 Hz
Filters
-

Receiver

Modulations
AM   AM-sync   FM   N-FM   CW   USB   LSB   RTTY   DV
Sensitivity
-
Selectivity
-
Receiver system
SDR, Direct Digital Sampling
IF-frequencies
-
Image rejection
≥ 100 dB
Audio output
1W diagnostic speaker

Transmitter

Modulations
AM   AM-sync   FM   N-FM   CW   USB   LSB   RTTY   DV
RF-Output
1-100W SSB, CW, FM, RTTY, DIGITAL; 1-25W AM

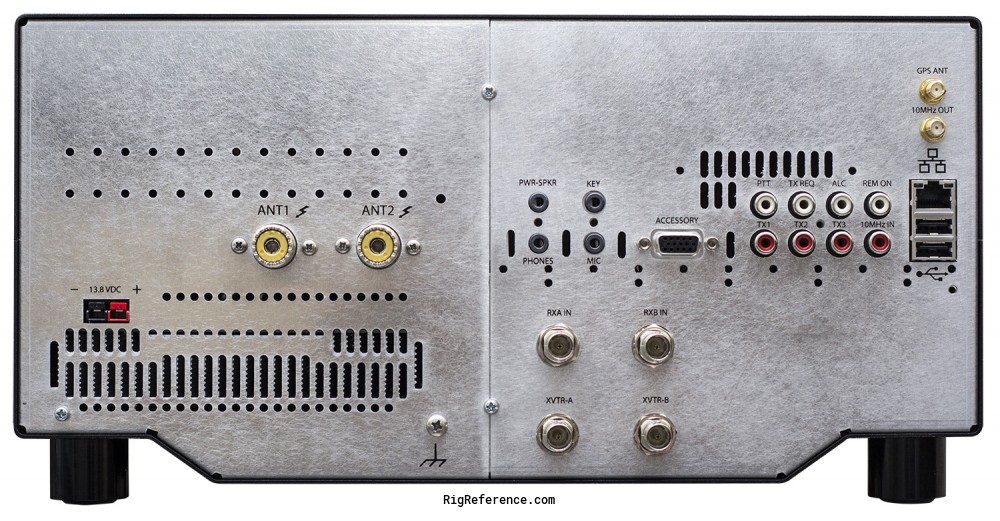

Connections

Antenna
BNC + SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC ± 15%
Current drain RX
2.0 A
TX
23 A

Physical

Dimensions (w×h×d)
350 × 171 × 337 mm (13.78 × 6.73 × 13.27 in)
Weight
-
Form factor
Headless
Manufactured
Between 2017 and 20xx in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
SDR (Software Defined Radio)
Ethernet
Integrated Antenna Tuner
USB 2.0

Optional:
* GPS Disciplined Oscillator; 5x10-12 over 24 hours
* MARS/CAP Coverage Filter Bank
* ThumbDV module for D-Star mode
Accessories
-
