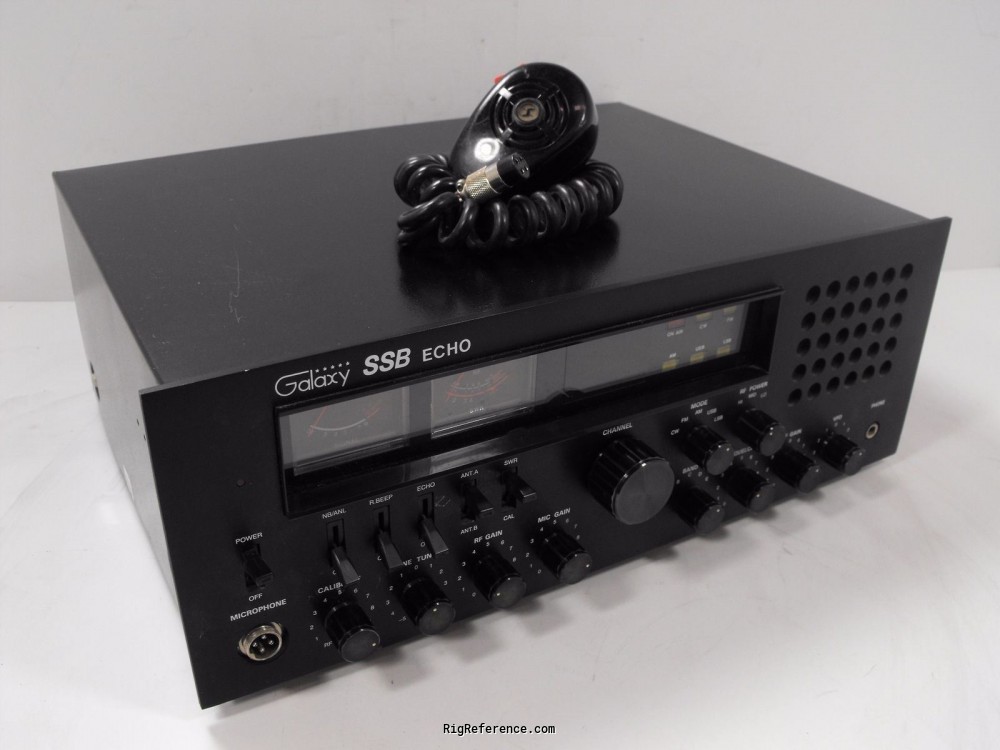

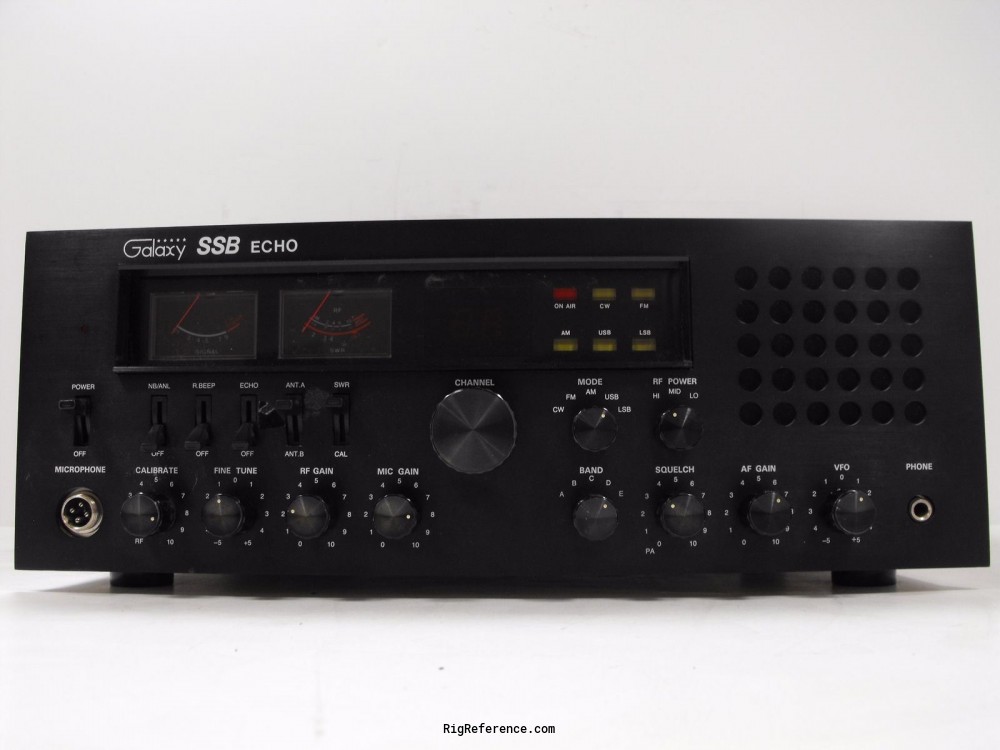

The Galaxy SSB Echo is a transceiver with a frequency range of 26,065-28,305 MHz for both receive and transmit. It features a PLL-synthesizer with ± 0.003% frequency stability and channelized tuning steps. The IF frequencies are 1st: 10.695 kHz and 2nd: 455 kHz with ≥ 50 dB image rejection. RF output power is 10 W for CW/AM/FM and 21 W for SSB. Audio output is 3 W @ 10 THD into 8 Ohms. It includes a SWR / Power meter, Roger beep, Echo, AGC, and Noise blanker. The radio has 1 memory bank with 3000 channels and requires mains power. Current drain during transmit is 90 W max.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ± 0.003%, PLL-synthesizer
- Tuning steps
- Channelized
- Memories
- 3000 channels in 1 bank(s)
Receiver
- RX-range
- 26,065-28,305 MHz
- Modulations
- AM FM CW USB LSB
- Sensitivity
- AM: 1.0 µV (10 dB S/N)
FM: 1.0 µV (20 dB S/N) - Selectivity
- AM/FM: 4 kHz @ -5 dB, 10 kHz @ -50 dB
SSB: 2 kHz @ -5 dB - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 1st: 10.695 kHz
2nd: 455 kHz - Image rejection
- ≥ 50 dB
- Audio output
- 3 W @ 10 THD into 8 Ohms
Transmitter
- TX-range
- 26,065-28,305 MHz
- Modulations
- AM FM CW USB LSB
- RF-output
- CW/AM/FM: 10 W, SSB: 21 W

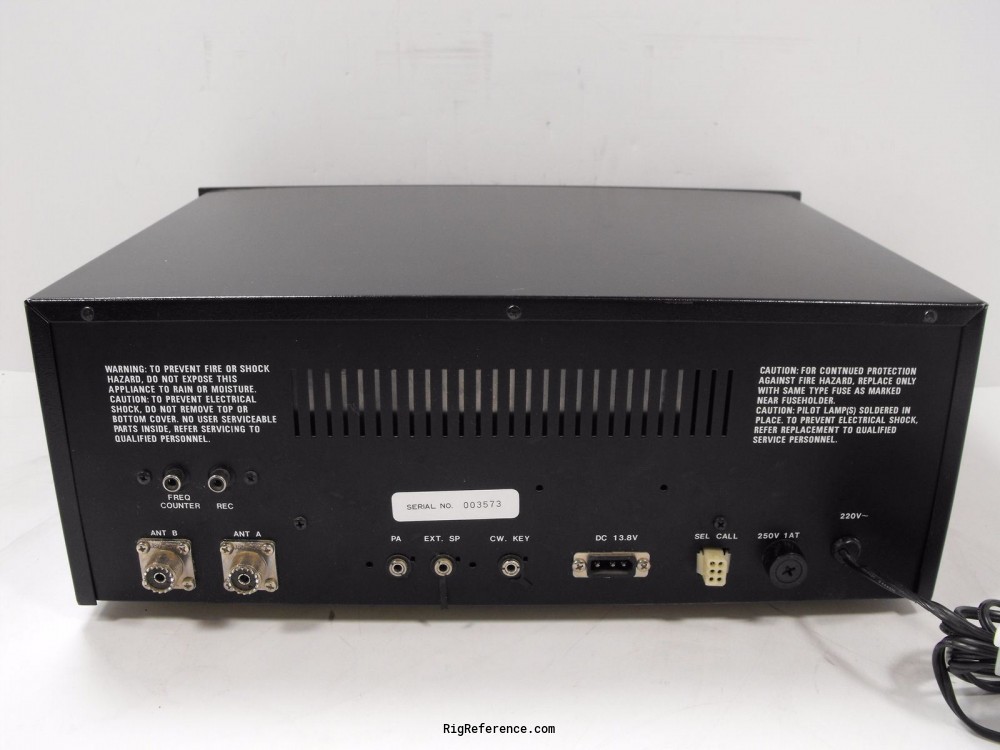

Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- 90 W max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx in USA
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- SWR / Power meter
Roger beep
Echo
AGC
Noise blanker - Accessories
- -
- RigReference ID
- 6225
- MPN
- GALAXY-SSB-ECHO
