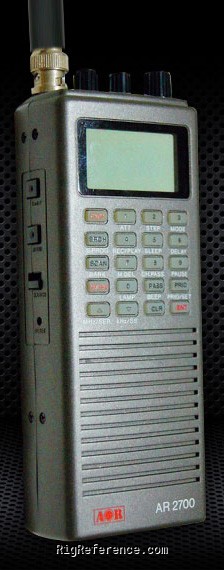

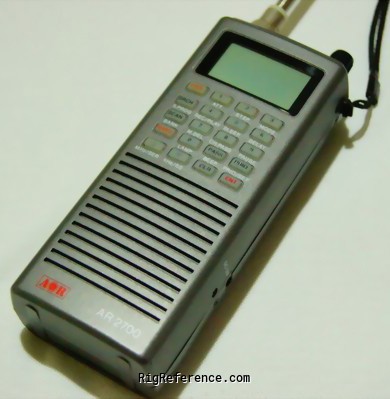

The AOR AR-2700 is a wide-range scanner receiver from the mid 1990's. It has some resemblance to the AOR AR-2800, but only half the memories and no SSB support.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 30 / 50 / 100 kHz
- Memories
- 500 channels in 10 bank(s) @ 30 channels/second
Receiver
- RX-range
- 0.5-600 / 800-1300 MHz
- Modulations
- AM N-FM W-FM
- Sensitivity
- 10-400 MHz
N-FM: 0.5 µV
W-FM: 6.0 µV
AM: 0.8 µV
400-1000 MHz
N-FM: 0.7 µV
W-FM: 6.0 µV
1000-1500 MHz
N-FM: 1.5 µV - Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 724.20 MHz
2nd: 287.550 MHz - Image rejection
- ?
- Audio output
- 500 mW into 8 ohms @ 10% THD
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 4.8-6 V DC internal batteries or 9-16 V DC external
- Current drain RX
- 95-140 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- 63 × 153 × 40 mm (2.48 × 6.02 × 1.57 in)
- Weight
- 315 gr (11.1 oz)
- Form factor
- Handheld
- Manufactured
- Between 1995 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Signal strength meter
AF (Audio Frequency) Scan
Backlit LCD
Backlit keypad
Attenuator
Sleep timer - Accessories
- ABF125 VHF Airband Filter (BNC M to F)
ABF128 VHF Airband Filter, Bandpass: 108-136 MHz. (BNC M to BNC F)
RU2700 IC Recorder (20 Seconds) Slot Card
SC2700 Vinyl carry case.
DA900 Flexible antenna 9 inch [BNC] - RigReference ID
- 6227
- MPN
- AOR-AR-002700
Manuals, diagrams and brochures
- AOR AR-2700 Operating Manual PDF - 331.1 kB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-2700. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Scanner / receiver equipment, the estimated value of the AOR AR-2700 is around:
- USD 143 ~ USD 266
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
