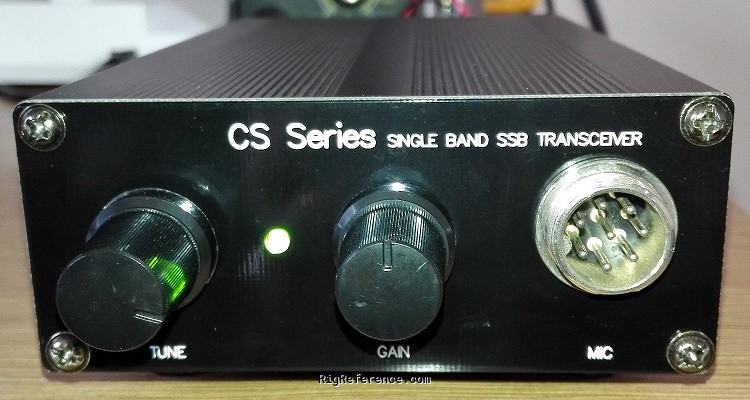

CRKITS CS-Series

Single Band SSB Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find CRKITS CS-Series rigs and spare parts on eBay Find the CRKITS CS-Series on Amazon
We receive a small fee when you buy through these links, thank you!

Successor to the CRKITS KN-Q7A. This model operates on one of the following bands: 80, 40, 20, 15 or 15 meter.

Frequency range

RX-range
One of the following bands: 80 / 40 / 20 / 17 / 15 m
TX-range
One of the following bands: 80 / 40 / 20 / 17 / 15 m
HAM bands
80m  40m  20m  17m (WARC)  15m
Stability
?
Tuning steps
?
Filters
6-pole crystal filter

Receiver

Modulations
SSB
Sensitivity
≥ 0.5 μV at 10 dB SNR
Selectivity
?
Receiver system
Single conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
3.5mm connector, mono output

Transmitter

Modulations
SSB
RF-Output
2 W PEP

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12~13.8 V
Current drain RX
30 mA
TX
2 A max

Physical

Dimensions (w×h×d)
153 × 97 × 40 mm (6.02 × 3.82 × 1.57 in) not including protruding features
Weight
500 gr (1.1 lbs)
Form factor
Handheld
Manufactured
Between 201x and 201x in China
MPN
CRKITS-CS-SERIES

Other features

Memories
None
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the CRKITS CS-Series user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

What's it worth

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the CRKITS CS-Series. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the CRKITS CS-Series might be around:

  • USD 137.00
Year Historic price Condition Submitted by
2017 USD 138.00 New / Mint RigReference
