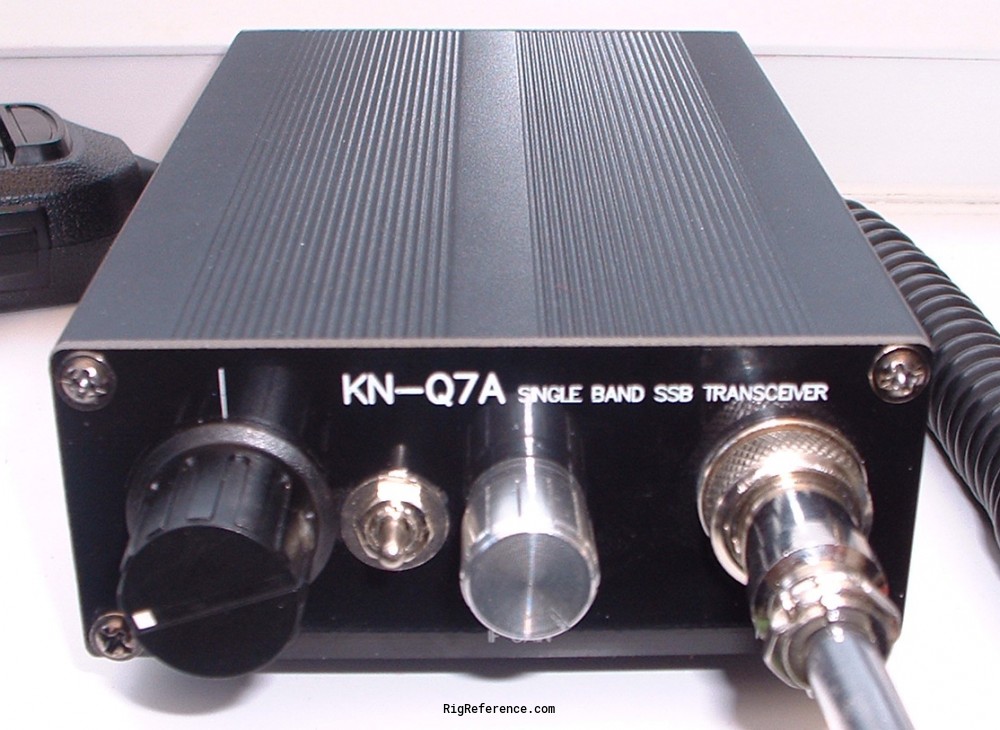

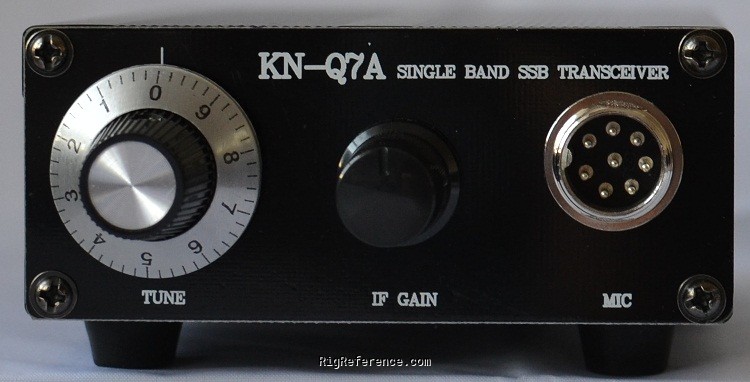

Upgraded version of the CRKITS KN-Q7. This kit was designed specifically for the worldwide market by BA6BF, and kitted and supplied by BD6CR/4. As the upgraded version of the popular KN-Q7 (more than 500 kits were sold worldwide), the KNQ7A has an improved circuit design and component selection, which makes it an ideal candidate for field operation, back pack and emergency use. This obsolete model has been followed up by the CRKITS CS-Series.

General characteristics

HAM bands
40m
Frequency stability
?
Tuning steps
?

Receiver

RX-range
40 m
Modulations
SSB
Sensitivity
≥ 0.5 μV at 10 dB SNR
Selectivity
?
Filters
about 2.0 kHz
Receiver system
Single conversion
IF-frequencies
8.467 MHz or 8.192 MHz, depending on the selected tuning range
Image rejection
?
Audio output
3.5mm connector, mono output

Transmitter

TX-range
40 m
Modulations
SSB
RF-Output
10 W PEP

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12~13.8 V
Current drain RX
30 mA
TX
2 A max

Physical

Manufactured
Between 2011 and 201x in China
Dimensions (w×h×d)
153 × 97 × 40 mm (6.02 × 3.82 × 1.57 in) not including protruding features
Weight
500 gr (1.1 lbs)
Form factor
Handheld

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
CRKITS-KN-Q000007A

Manuals, diagrams and brochures

CRKITS KNQ7A Kit Manual submitted by RigReference
CRKITS KNQ7A Part List submitted by RigReference
CRKITS KNQ7A One-page quick guide submitted by RigReference
