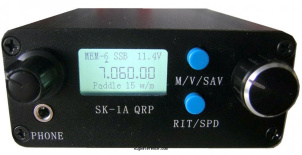

The Youkits SK-1A is a 40m SSB transceiver. Frequency range is 5.9-8 MHz for reception and 7.0-7.3 MHz for transmission. Frequency stability is ~100 Hz per half hour. Tuning steps are 10 / 100 Hz, 1 / 100 kHz. RF output is 8-9 W (@ 13.8 V DC). Memory banks: 1 with 8 memory channels. Power requirements are 10-15 V DC. Features include Sidetone: 700 Hz and Keyer: 5-40 wpm adjustable. Dimensions are 38 × 88 × 124 mm. Current drain is 50-60 mA (RX) and 800 mA (TX).
General characteristics
- HAM bands
- 40m
- Frequency stability
- ~ 100 Hz per half hour
- Tuning steps
- 10 / 100 Hz, 1 / 100 kHz
- Memories
- 8 channels in 1 bank(s)
Receiver
- RX-range
- 5.9-8 MHz
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- 4 crystal filter, 400Hz-3KHz continued adjustable
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 400 Hz - 3 kHz
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 7.0-7.3 MHz
- Modulations
- CW SSB
- RF-output
- 8-9 W (@ 13.8 V DC)
Connections
- Antenna
- BNC
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 10-15 V DC
- Current drain RX
- 50-60 mA
- TX
- 800 mA
Physical
- Dimensions (w×h×d)
- 88 × 38 × 124 mm (3.46 × 1.50 × 4.88 in)
- Weight
- 280 gr (9.9 oz)
- Form factor
- Handheld
- Manufactured
- Between 201x and 201x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Sidetone: 700 Hz
Keyer: 5-40 wpm adjustable - Accessories
- -
- RigReference ID
- 6245
- MPN
- YOUKITS-SK-000001A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Youkits SK-1A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Youkits SK-1A in Good condition is around:
- USD 142 ~ USD 150
These estimates are based on the following prices:
