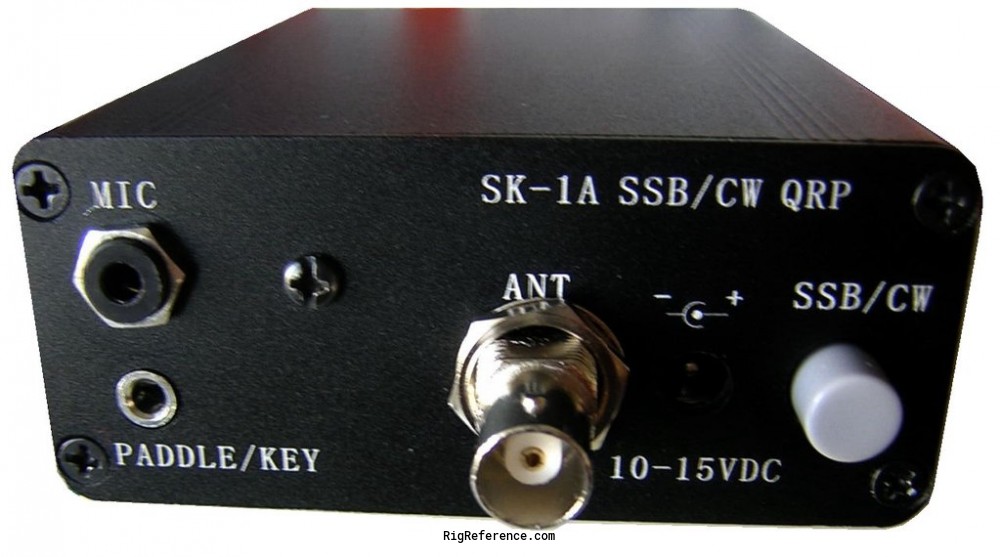

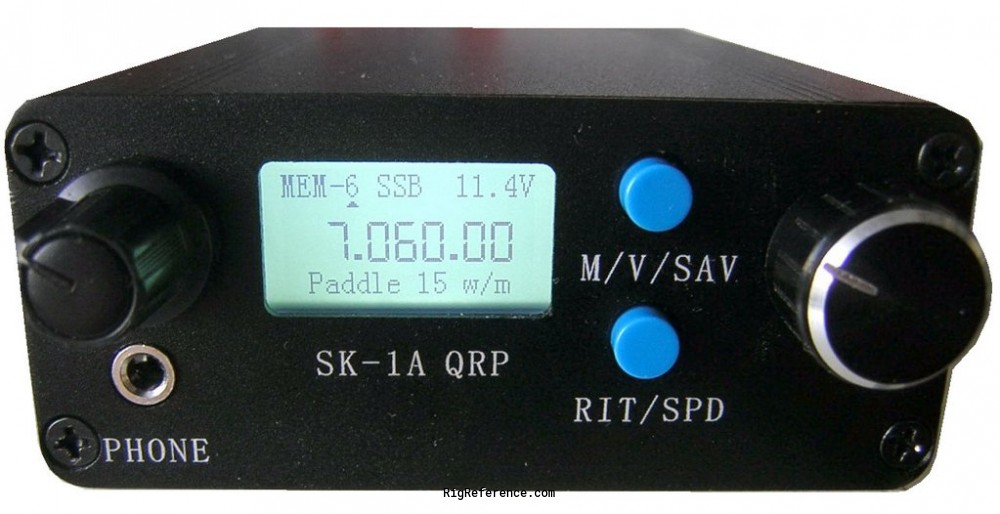

Youkits SK-1A 40m SSB Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
5.9-8 MHz
TX-range
7.0-7.3 MHz
HAM bands
40m
Stability
-
Tuning steps
10 / 100 Hz, 1 / 100 kHz
Filters
-

Receiver

Modulations
CW   USB
Sensitivity
-
Selectivity
4 crystal filter, 400Hz-3KHz continued adjustable
Receiver system
-
IF-frequencies
400 Hz - 3 kHz
Image rejection
-
Audio output
-

Transmitter

Modulations
CW   USB
RF-Output
8-9 W (@ 13.8 V DC)

Connections

Antenna
BNC
Impedance
-

Electrical

Power requirements
10-15 V DC
Current drain RX
50-60 mA
TX
800 mA

Physical

Dimensions (w×h×d)
88 × 38 × 124 mm (3.46 × 1.50 × 4.88 in)
Weight
280 gr (9.9 oz)
Form factor
Handheld
Manufactured
Between 201x and 201x
MPN

Other features

Memories
8 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Sidetone: 700 Hz
Keyer: 5-40 wpm adjustable
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Do you know this rig? Tell us something about it!

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Youkits SK-1A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Youkits SK-1A might be around:

  • USD 188.00
Price Condition Year User
USD 189.00 New / Mint 2017 RigReference
