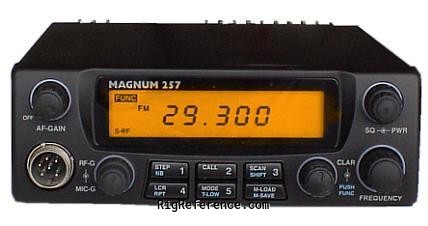

High power version of the Magnum 257.

General characteristics

HAM bands
11m (CB)  10m
Frequency stability
?
Tuning steps
1 / 10 / 100 kHz
Memories
400 channels in 0 bank(s)

Receiver

RX-range
25.165-29.695 MHz
Modulations
AM   FM   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
25.165-29.695 MHz
Modulations
AM   FM   USB   LSB
RF-output
AM/FM: 20 W, SSB: 80 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
150 × 50 × 235 mm (5.91 × 1.97 × 9.25 in)
Weight
1.30 kg (2.9 lbs)
Form factor
Mobile
Manufactured
Between 201x and 201x

Other features

Usage
Citizen Band (27Mc)
Features + options
-
Accessories
-
RigReference ID
6278
MPN
MAGNUM-000257-HP
