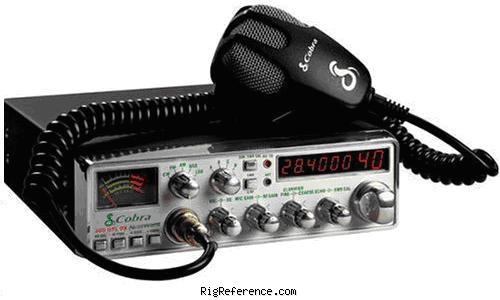

The Cobra 200 GTL DX is a mobile transceiver. It covers 26.065-29.695 MHz for both transmit and receive. The RF output is SSB: 12/100 W, AM/FM: 4/30 W. Features include Noise Blanker, ANL, SWR-meter, Roger beep, and Digital echo chamber. It has 1 memory bank with 80 channels. Dimensions are 60 × 200 × 280 mm. The radio requires 13.8 V DC power.
General characteristics
- HAM bands
- 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 80 channels in 1 bank(s)
Receiver
- RX-range
- 26.065-29.695 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- FM: 0.18 µV (12 dB SINAD)
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 26.065-29.695 MHz
- Modulations
- AM FM CW SSB
- RF-output
- SSB: 12/100 W, AM/FM: 4/30 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 200 × 60 × 280 mm (7.87 × 2.36 × 11.02 in)
- Weight
- 2.90 kg (6.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- Noise Blanker
ANL
SWR-meter
Roger beep
Digital echo chamber - Accessories
- -
- RigReference ID
- 4727
- MPN
- COBRA-000200-GTL-DX
Manuals, diagrams and brochures
- President Cobra 200 GTL DX Owner's Manual PDF - 350.4 kB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Cobra 200 GTL DX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Cobra 200 GTL DX in Good condition is around:
- EUR 226
These estimates are based on the following prices:
Links & tools
- Search YouTube for Cobra 200 GTL DX videos
- Search Google for Cobra 200 GTL DX information
- Search Google Images for Cobra 200 GTL DX
- Search Wikipedia for Cobra 200 GTL DX information
- Search the Boat Anchor Manual Archive (BAMA) for Cobra 200 GTL DX for manuals and documents (using Google)
-
Find the Cobra 200 GTL DX on Amazon
