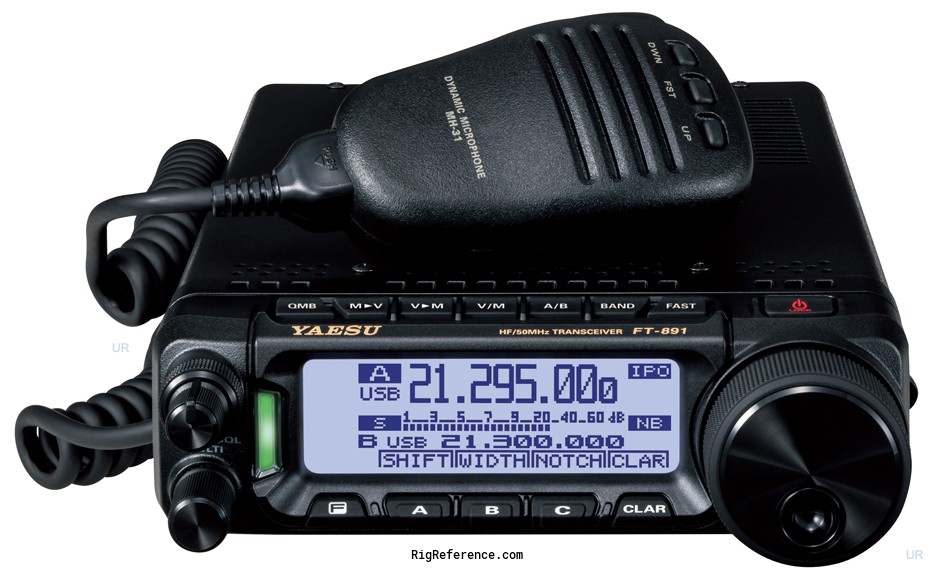

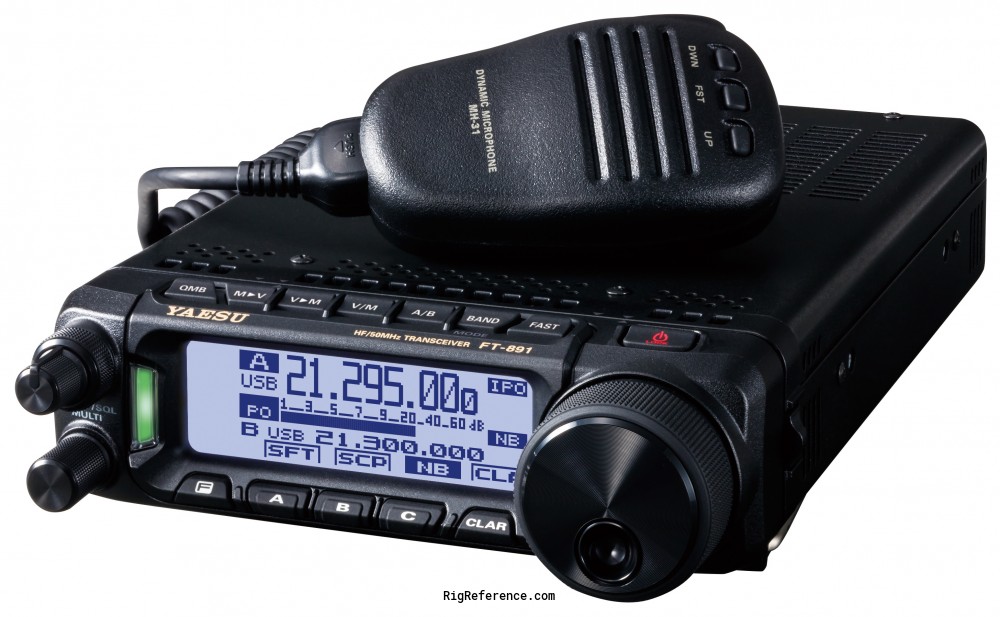

The Yaesu FT-891 is a compact HF transceiver designed for mobile and desktop use and delivers up to 100 W. High-end 32-Bit floating point DSP (Digital Signal Processing) helps provide cleaner, clearer signals, enhances operating experience and reducing overall operator fatigue. On the rear is a SO-239 antenna jack and 13.8 V DC socket. An external PSU is required.
The specified receive current of 2 A is an absolute worst case scenario. Real-world tests have shown the figure to be more in the range of 0.9-1.1 amps. Transmit current is also seldom going above 15 A, even when outputting the full 100 W.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- TCXO ± 0.5 p.p.m.
- Tuning steps
- CW/SSB: 10 Hz, AM/FM/W-FM: 0.1 kHz
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 0.3-56 MHz
- Modulations
- AM FM CW USB LSB
- Sensitivity
- SSB/CW (10 dB S/N): 0.158 µV (1.8-30 MHz), 0.125 µV (50-54 MHz)
AM (10 dB S/N): 5 µV (0.5-1.8 MHz), 1.6 µV (1.8-30 MHz), 1.25 µV (50-54 MHz)
FM (12 dB SINAD): 0.35 µV (29 / 50-54 MHz) - Selectivity
- SSB/CW: 2.4 kHz (-6 dB), 3.6 kHz (-60 dB)
CW-N: 500 Hz (-6 dB), 750 Hz (-60 dB)
AM: 6 kHz (-6 dB), 15 kHz (-60 dB)
FM: 12 kHz (-6 dB), 30 kHz (-60 dB) - Filters
- 3 kHz roofing filter
- Receiver system
- Double / Triple Conversion Superheterodyne
- IF-frequencies
- 1st: 69.450 MHz (SSB/CW/AM/FM)
2nd: 450 kHz
3rd: 24 kHz - Image rejection
- 70 dB (HF/6 m), 60 dB (2/70 cm)
- Audio output
- 2.5 W (@4 Ohms, 10% THD or less)
Transmitter
- TX-range
- 10-160m + WARC + 60m / 6m
- Modulations
- AM FM CW USB LSB
- RF-output
- FM/SSB/CW: 100 W, AM: 25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ±15%
- Current drain RX
- 1.1 A (2 A max)
- TX
- 15 A (23 A max)
Physical
- Dimensions (w×h×d)
- 155 × 52 × 218 mm (6.10 × 2.05 × 8.58 in)
- Weight
- 1.90 kg (4.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2017 and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6287
- MPN
- YAESU-FT-000891
Manuals, diagrams and brochures
- Yaesu FT-891 Operating Manual PDF - 19.71 MB, submitted by RigReference
- Yeasu FT-891 Advance Manual PDF - 9.31 MB, submitted by Necromonster
- Yeasu FT-891 brochure PDF - 1.57 MB, submitted by Necromonster
- Yeasu FT-891 Quick Manual PDF - 332.7 kB, submitted by Necromonster
- Yeasu FT-891 Cat Reference Book PDF - 527.0 kB, submitted by Necromonster
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-891. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-891 in Good condition is around:
- USD 450 ~ USD 470
These estimates are based on the following prices:
