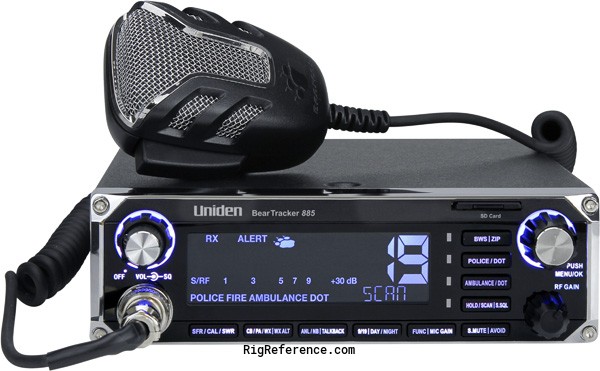

Uniden-Bearcat BearTracker 885 CB-radio + VHF/UHF scanner hybrid

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



A hybrid scanner and CB-radio. The CB-side has 40 channels (AM)

Frequency range

RX-range
25-54 / 137-225 / 320-512 / 758-960 MHz (less cellular)
TX-range
26.965-27.405 MHz
HAM bands
11m (CB)
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   N-FM   APCO-25
Sensitivity
Scanner (FM): 0.3-0.4 µV (12 dB SINAD)
CB (AM): 0.5 µV (10 dB S/N)
Selectivity
-
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 265.55 or 380.75 MHz (depending on band)
2nd: 10.8 MHz
3rd: 450 kHz
Image rejection
-
Audio output
2.5 W at 10% distortion

Transmitter

Modulations
AM
RF-Output
4 W

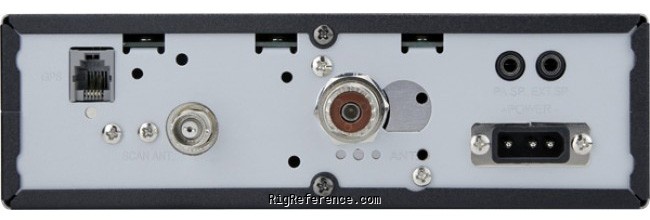

Connections

Antenna
BNC + SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC
Current drain RX
-
TX
1.9 A max

Physical

Dimensions (w×h×d)
185 × 56 × 205 mm (7.28 × 2.20 × 8.07 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Mobile
Manufactured
Between 2017 and 201x

Other features

Memories
40 channels in 1 bank(s) @ 85 channels/second
Usage
Citizen Band (27Mc)
Features + options
GPS
Weather alert
SD-card slot
Multi-color LCD
Trunk tracking (Motorola Type I/II/IIi/X2-TDMA, EDACS FM/N-FM, LTR, APCO Astro IMBE/Astro 25.P25/AMBE HDQPSK
CTCSS/PL + DCS detector
Beartracker warning system
SWR-meter for CB
Accessories
-
