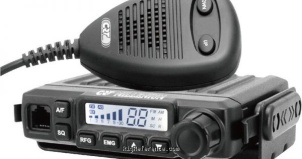

The CRT Millenium is a CB transceiver. The frequency range is 26.565-27.99125 MHz supporting AM modulation. Maximum RF-output is 4 W. The radio features 40 channels in one memory bank. Audio output is 1 W. It operates on the 11m (CB) band. Dimensions are 27 × 110 × 120 mm. Current drain during transmit is 1.8 A max. Power requirements are 13.2 V DC.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- 300 Hz
- Tuning steps
- ?
- Memories
- 40 channels in 1 bank(s)
Receiver
- RX-range
- 26.565-27.99125 MHz
- Modulations
- AM FM
- Sensitivity
- 0.25 µV @ 12 dB
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 10.7 MHz
450 kHz - Image rejection
- 70 dB
- Audio output
- 1 W
Transmitter
- TX-range
- 26.565-27.99125 MHz
- Modulations
- AM FM
- RF-output
- 4 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.2 V DC
- Current drain RX
- ?
- TX
- 1.8 A max
Physical
- Dimensions (w×h×d)
- 110 × 27 × 120 mm (4.33 × 1.06 × 4.72 in)
- Weight
- 320 gr (11.3 oz)
- Form factor
- Mobile
- Manufactured
- Between 2017 and 20xx
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6552
- MPN
- CRT-MILLENIUM
Manuals, diagrams and brochures
- CRT Millenium User Manual PDF - 11.94 MB, submitted by Gerd
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used CRT Millenium. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the CRT Millenium is around:
- USD 157 ~ USD 291
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
