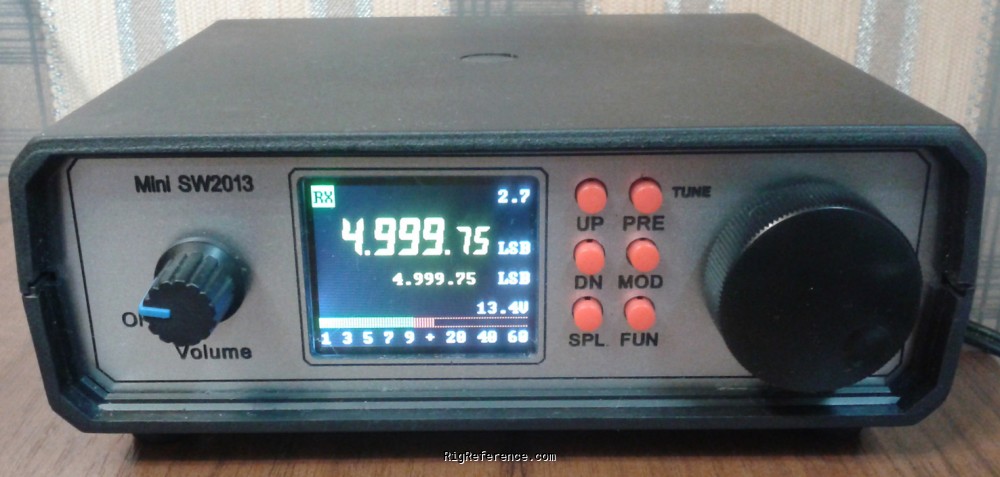

Compact HF transceiver with split operation functionality. Color display, built-in keyer and SWR-meter. No memories. Sold as kit.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
?
Tuning steps
?
Memories
None

Receiver

RX-range
0.03-32 MHz
Modulations
CW   USB   LSB
Sensitivity
Pre-amp off: 0.5 µV (10 dB S/N)
Pre-amp on: 0.25 µV (10 dB S/N)
Selectivity
SSB/CW: 2.7 kHz (-6 dB)
CW narrow: 500 Hz (-6 dB)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
160-10 m + WARC
Modulations
CW   USB   LSB
RF-output
1...15 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
13.5-350 mA
TX
0.82-2.9 A

Physical

Dimensions (w×h×d)
149 × 50 × 130 mm (5.87 × 1.97 × 5.12 in)
Weight
540 gr (1.2 lbs)
Form factor
Mobile
Manufactured
Between 2016 and 20xx in Ukraine

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6332
MPN
MINI-SW002016
