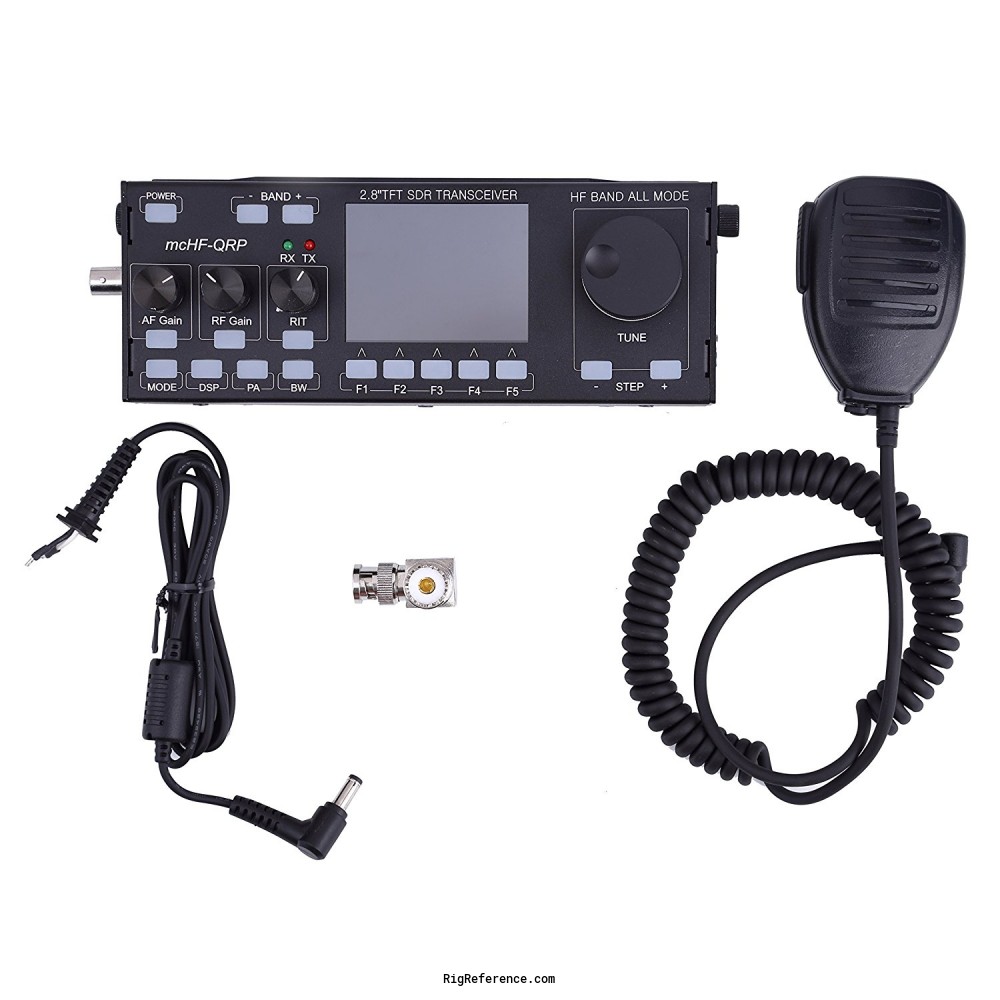

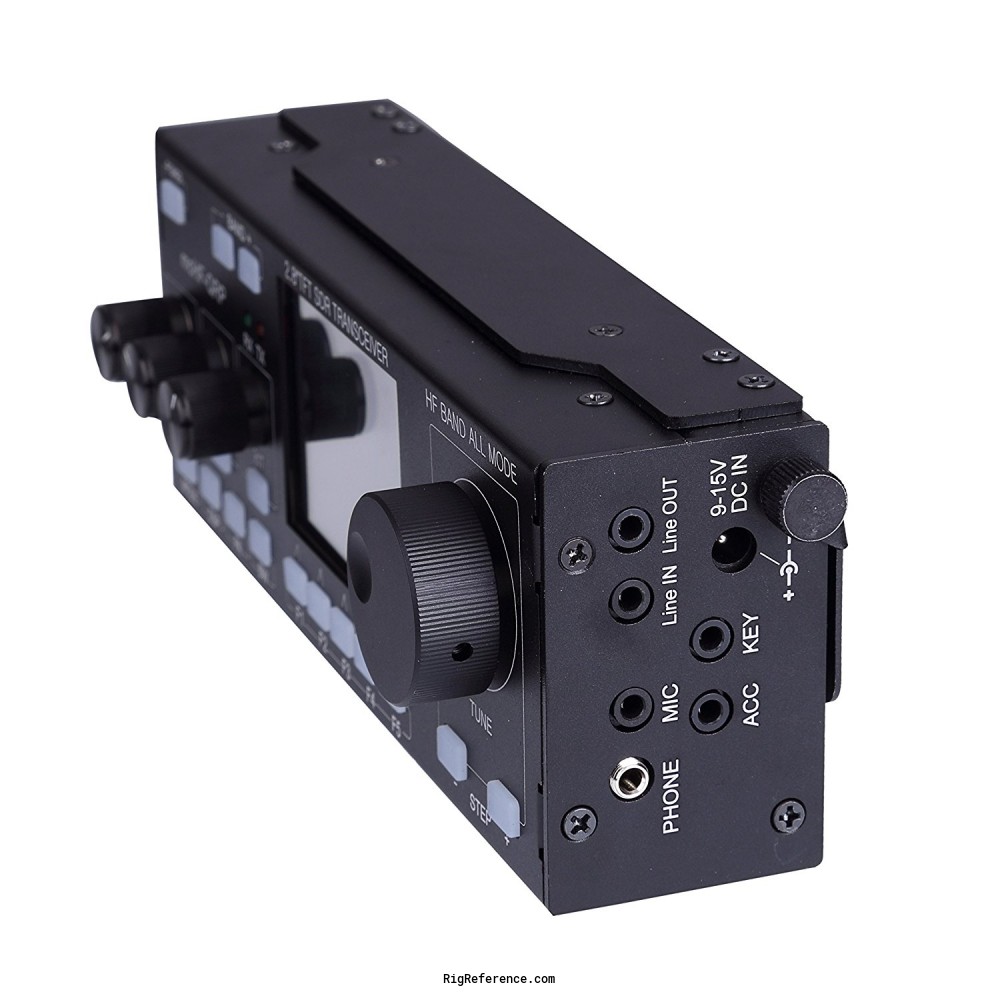

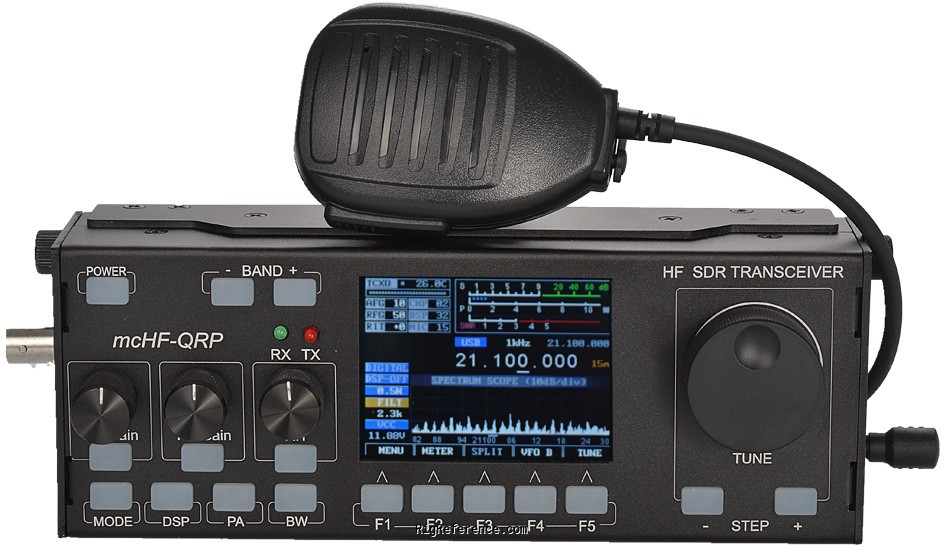

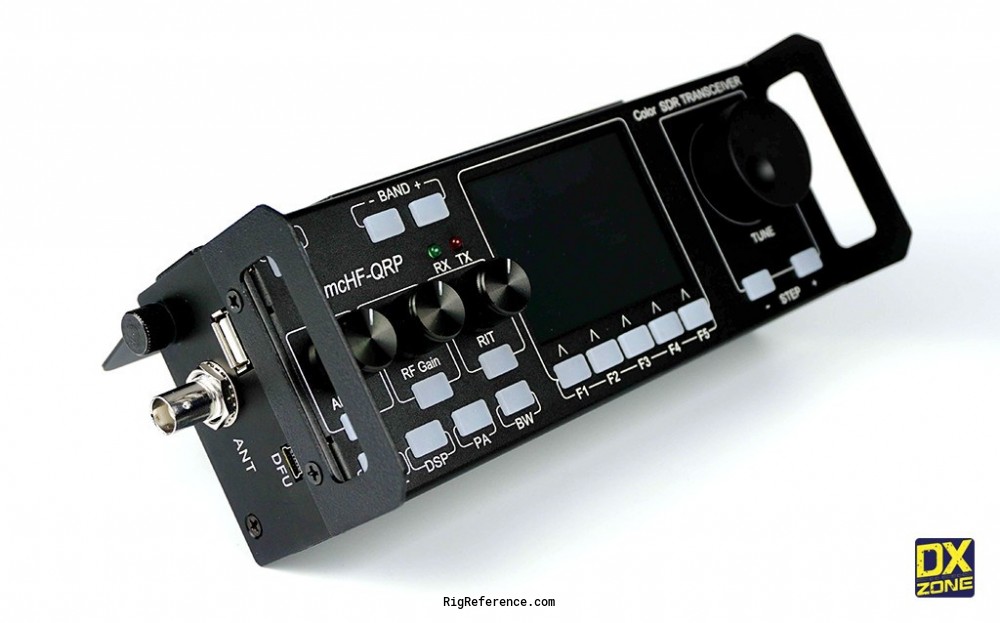

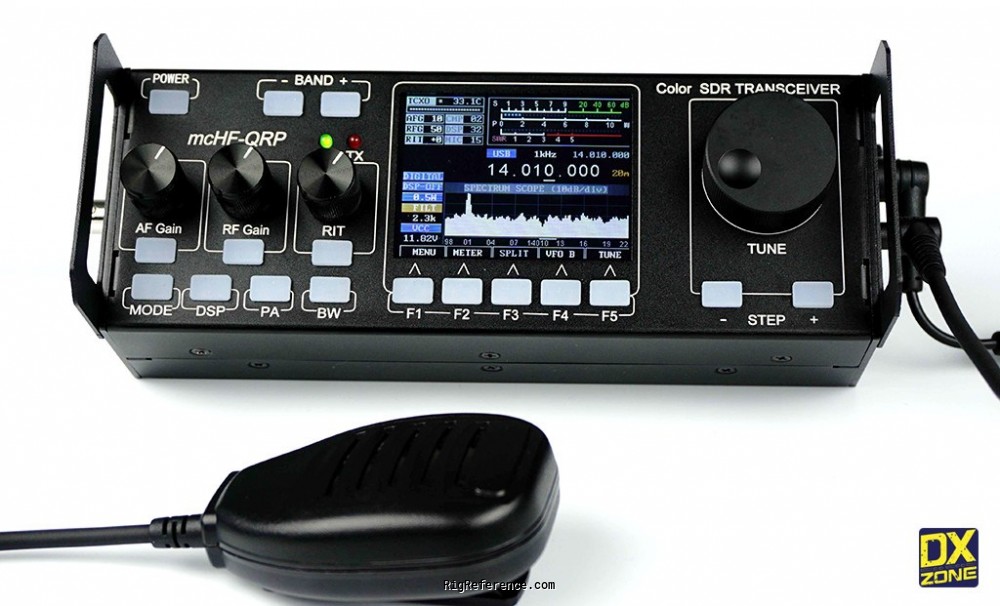

Risen RS-918SSB QRP SDR HF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Some sources mention RX starts at 2.5 MHz.

Frequency range

RX-range
1.8-30 MHz
TX-range
160-10 m
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Stability
± 1.5 p.p.m. ± 0.5 p.p.m. with optional TCXO
Tuning steps
1 Hz
Filters
-

Receiver

Modulations
AM   FM   CW   USB   LSB   DV
Sensitivity
≥ -115 dBm / 0.11~0.89 μV
Selectivity
SSB 2.3 kHz (-6 dB)
CW 500 Hz (-6 dB)
Receiver system
SDR
IF-frequencies
-
Image rejection
-
Audio output
8 ohm, 0.5 W

Transmitter

Modulations
FM   CW   USB   LSB   DV
RF-Output
5-15 W

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
9-15 V DC
Current drain RX
450 mA
TX
3 A max

Physical

Dimensions (w×h×d)
215 × 74 × 62 mm (8.46 × 2.91 × 2.44 in)
Weight
613 gr (1.4 lbs)
Form factor
Mobile
Manufactured
Between 2017 and 20xx in China

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Spectrum waterfall display
Noise Reduction
Automatic notch filter
SWR-meter
Supply voltage meter
AF-meter
Accessories
-

Manuals, diagrams and brochures

Risen RS-918 Specifications submitted by RigReference
Risen RS-918 Sales Brochure submitted by RigReference

Upload relevant documents

Show other Risen documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Risen RS-918SSB. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Risen RS-918SSB might be around:

  • USD 459.00
Price Condition Year User
USD 460.00 Mint / New 2018 RigReference
