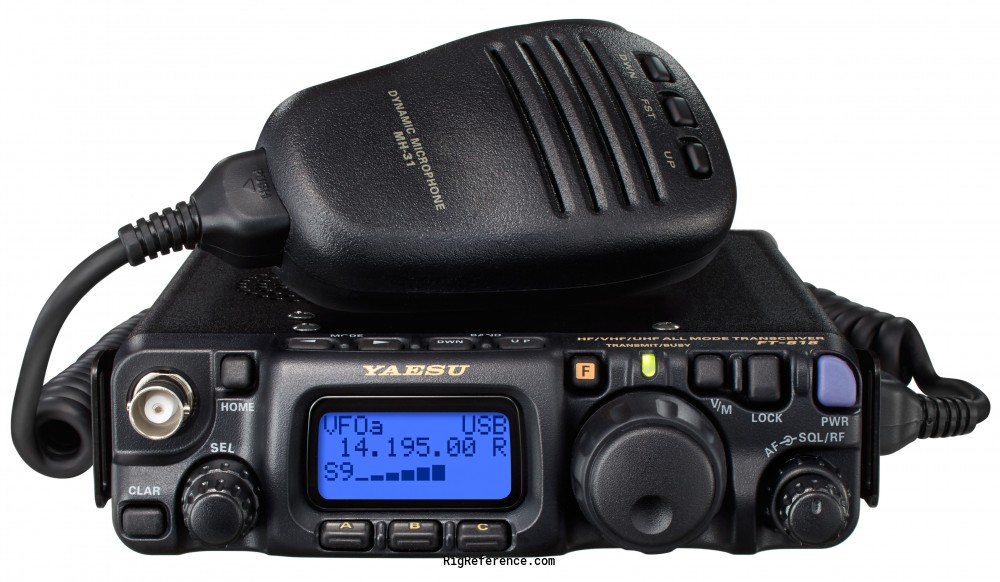

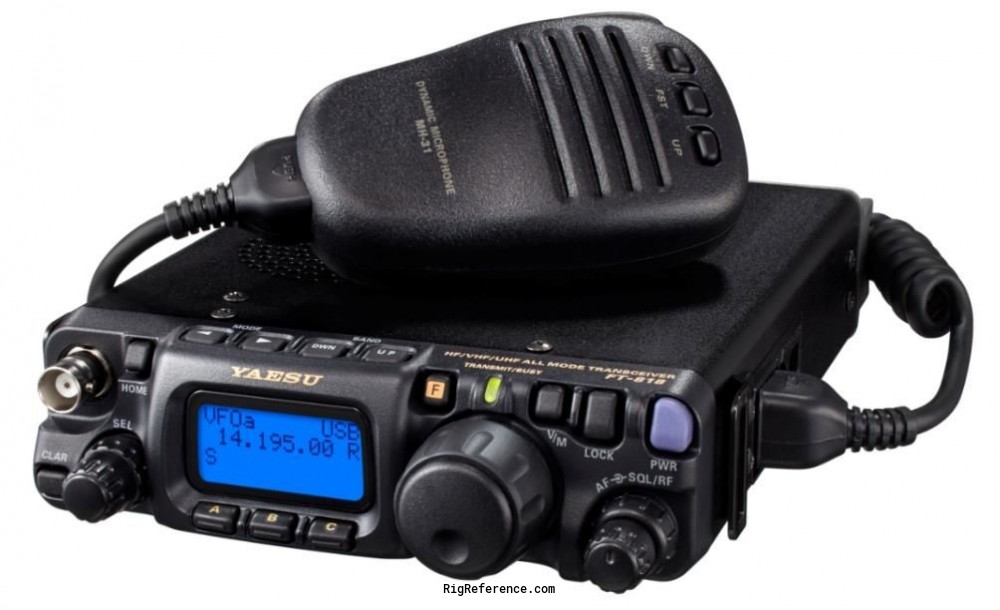

Successor to the Yaesu FT-817 and Yaesu FT-817ND, released in March 2018. Improved specs include 60 m support, higher capacity battery pack and TCXO-9 fitted as standard.
The FT-818 provides 6W of solid output power with an external DC power source. The supplied Ni-MH battery pack (SBR-32MH) has been upgraded to now provide larger battery capacity - 9.6v/ 1900mAh. The recent launch of several new satellites is a certain indicator that the large global community of satellite enthusiast are going to be very delighted to learn that the FT-818 includes a Built-in TCXO-9 oscillator that gives the FT-818 fantastic frequency stability (±0.5ppm).
The FT-818 includes all the useful functions that are included in the FT-817ND: Dual VFOs; Split-Frequency operation; IF Shift; Clarifier “R.I.T”; IF Noise Blanker; RF Gain and Squelch control; IPO (Intercept Point Optimization); AM Aircraft reception; AM and FM Broadcast reception; VOX; Built-in Electronic Keyer; Adjustable CW Pitch; Automatic Repeater Shift (ARS); Built-in CTCSS Encoder/ Decoders; 208 memory channels with 10 memory groups; two antenna connectors; Automatic Power-Off (APO) and Time-Out-Timer(TOT) functions; and so on.
SKU: ZYS-FT-818
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 2m 70cm 10m
- Frequency stability
- ± 0.5 p.p.m. with buit-in TCXO-9
- Tuning steps
- 10 / 100 Hz
- Memories
- 208 channels in 10 bank(s)
Receiver
- RX-range
- 0.01-33 / 33-56 / 76-108 / 108-154 / 420-470 MHz
- Modulations
- AM FM W-FM CW USB LSB AFSK
- Sensitivity
- SSB/CW:
100 kHz-1.8 MHz: Outside guaranteed range
1.8-28 MHz 0.25 µV
28-30 MHz 0.25 µV
50-54 MHz 0.2 µV
144/430 MHz 0.125 µV
AM:
100-500 kHz: Outside guaranteed range
500 kHz - 1.8 MHz 32 µV
1.8-28 MHz 2 µV
28-30 MHz 2 µV
50-54 MHz 2 µV
144/430 MHz Not supported
FM:
28-30 MHz 0.5 µV
50-54 MHz 0.32 µV
144/430 MHz 0.2 µV
IPO, ATT off, SSB/CW/AM = 10 dB S/N, FM = 12 dB SINAD - Selectivity
- AM: 6 kHz (-6 dB), 20 kHz (-60 dB)
FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.2 kHz (-6 dB), 4.5 kHz (-60 dB)
SSB (optional YF-122S installed): 2.3 kHz/4.7 kHz (–66 dB)
CW (optional YF-122C installed): 500 Hz/2.0 kHz
CW (optional YF-122CN installed): 300 Hz/1.0 kHz - Filters
- See selectivity
- Receiver system
- Single / Double conversion superheterodyne + DSP
- IF-frequencies
- 1st: 68.33 MHz
2nd: 455 kHz - Image rejection
- HF: 70 dB, VHF: 60 dB
- Audio output
- 1 W internal + 3.5mm jack (4-16 Ohms)
Transmitter
- TX-range
- 160-10 / 6 / 2 m / 70 cm
- Modulations
- AM FM CW USB LSB AFSK
- RF-output
- SSB/CW/FM: 6 W max, AM: 2 W max
Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC or 9.6 V Li-ion (1900 mAh)
- Current drain RX
- 450 mA
- TX
- 2.7 A max
Physical
- Dimensions (w×h×d)
- 135 × 38 × 165 mm (5.31 × 1.50 × 6.50 in) w/o knob and connector
- Weight
- 900 gr (2.0 lbs) w/o Battery, Antenna and Microphone
- Form factor
- Mobile
- Manufactured
- Between 2018 and 20xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Increased power output 6W(SSB, CW, FM) 2.0W(AM Carrier) *NEW!
Improved frequency stability ±0.5 p.p.m. : Built-in TCXO-9 *NEW!
Larger battery capacity : 9.6V/1,900mAh (SBR-32) *NEW!
208 Memory Channels / 10 Memory Groups
Operates on 160-10m , HF, 6m, 2m and 70 cm Bands
Ultra Compact and Portable
Two Antenna Connectors
IF Shift, IF Noise Blanker, IPO, ATT
CW "Semi-Break-in", CW Reverse, CW Pitch Control
Built-in Electronic Keyer
Multi-Color Easy to see LCD
Internal Battery Operation Capability
AR - Accessories
- CSC-83: Carrying case
CT-39A: Packet cable
CT-62: CAT interface cable, RS-232C
E-DC-6: DC cable
FBA-28: Battery case for 8*LR6/AA alkaline cells
MH-31A8J: Standard microphone
MH-36E8J: DTMF microphone
PA-48C: Battery charger, 100-240 V AC. 12 V DC, 500 mA
SBR-32: NiMh battery pack. 9.6 V, 1900 mAh
USB-62: CAT interface cable, USB
YF-122C: 500 Hz Collins CW filter. IF: 455 kHz
YF-122CN: 300 Hz Collins CW filter. IF: 455 kHz
YF-122S: 2.3 kHz Collins SSB filter. IF: 455 kHz
YHA-63: Rubber antenna, 6 m/2 m/70 cm - RigReference ID
- 6364
- MPN
- YAESU-FT-000818
Manuals, diagrams and brochures
- Yaesu FT-818ND Operating Manual PDF - 1.48 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-818. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Yaesu FT-818 in Good condition is around:
- EUR 451 ~ EUR 530
- USD 519 ~ USD 582
These estimates are based on the following prices:
