General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  2m  70cm  10m
Frequency stability
4 p.p.m. from 1 min. to 60 min. after power on. 25° C: 1 p.p.m./hour
Tuning steps
10 Hz (CW/SSB), 100 Hz (AM/FM)

Receiver

RX-range
0.1-56 / 76-154 / 420-470 MHz
Modulations
AM   CW   USB   LSB   RTTY
Sensitivity
?
Selectivity
SSB/CW: 2.2 kHz/4.5 kHz
AM: 6 kHz/20 kHz
FM: 15 kHz/30 kHz
FM-N: 9 kHz/25 kHz
SSB (option):2.3 kHz/4.7 kHz (-66 dB)
CW (option):500 Hz/2.0 kHz
Filters
SSB: 400 Hz-2600 Hz (-6 dB)
Receiver system
Double-Conversion Superheterodyne
IF-frequencies
1st : 68.33 MHz (SSB/CW/AM/FM);10.7 MHz (WFM)
2nd: 455 kHz
Image rejection
60-70 dB
Audio output
1.0 W (8 Ohms, 10% THD or less)

Transmitter

TX-range
10-160 m + WARC / 50-54 / 144-146 / 430-440 MHz (Europe)
10-160 m + WARC / 50-54 / 144-148 / 440-450 MHz (USA)
Modulations
AM   CW   USB   LSB   RTTY
RF-Output
5 W (SSB/CW/FM) and 1.5 W (AM) with 13.8 V external DC, 2.5 W (SSB/CW/FM) and 0.7 W (AM) with 9.6 V internal DC

Connections

Antenna
BNC + SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
8NiCd/LR6 or 13.8V DC external
Current drain RX
250-450 mA
TX
2.0 A

Physical

Manufactured
Between 2000 and 200x
Dimensions (w×h×d)
135 × 38 × 165 mm (5.31 × 1.50 × 6.50 in)
Weight
1.17 kg (2.6 lbs)
Form factor
Mobile

Other features

Memories
200 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS/DCS. Spectrum scope. Alpha tags. 9K6 packet ready
Accessories
?
MPN
YAESU-FT-000817

Manuals, diagrams and brochures

Yaesu FT-817 Simplified Operating Guide submitted by RigReference
Yaesu FT-817 (Non-ND) Operating Manual submitted by Necromonster
Yaesu FT-817 Technical Supplement submitted by Necromonster

Upload relevant documents

Reviews & stories

Excellent Radio

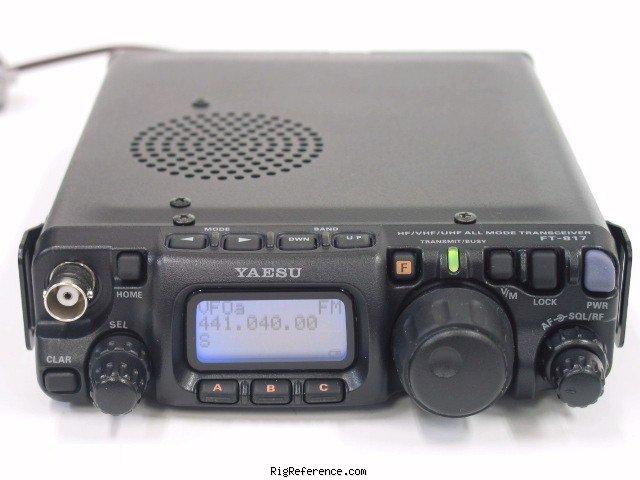

Yaesu FT-817, Mobile HF/VHF/UHF Transceiver

A one of a kind radio which is a good all round kit

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Mint condition in 2007

When you need to carry a rig with you which can do mostly everything

Yaesu FT-817, Mobile HF/VHF/UHF Transceiver

This rig fits in most backpacks or messenger bags, can do 160m to 70cm with up to 5(10) watts of RF power, runs fairly long on quality AA batteries and there's many accessories for it including print files for having them printed. It's MARS/CAP modified.

It definetly is a keeper and can do things where my B3 modified VX-7R simply has to give up (no SSB for example). The very first weekend I got it, I've tried it out on the 80m band attached to some rough matched g5rv and got 100 kilometers per watt during a contest. (250km @2.5W) running on AA batteries.

Overall

Performance
Build quality
Features
User friendliness
Value for money
Aquired
Okay condition in 2018
EUR 300.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-817. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-817 is around:

  • EUR 298.00 ~ EUR 286.00
  • USD 541.00 ~ USD 442.00

These estimates are based on the following prices: (see all 6 prices)

Year Historic price Condition Submitted by
2018 EUR 300.00 Used / Okay Lukas Thorwald Hey
2018 EUR 300.00 Used / Okay Lukas Thorwald Hey
2017 USD 450.00 Used / Good Necromonster
2017 USD 550.00 Used / Good Necromonster
2016 EUR 300.00 Used / Good ON8ODK
