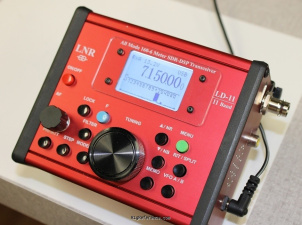

The LNR Precision LD-11 is a Digital Direct Conversion, SDR type tranceiver with build-in DSP CPU (SM32a).
This enables direct sampling with extremely low phase and floor noise.
The DSP is unique and features two independent channels. It also employs a unique differential algorithm within the software which is applied for IQ processing of the channels with phase suppression of the unwanted side-band channel.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ± 3 p.p.m. (Si570 defined) typical over 0-50 °C
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 1.8–29.990 / 50-54 MHz
- Modulations
- AM FM CW USB LSB RTTY PSK31/63 SSTV
- Sensitivity
- 0.15 µV w/o preamp
- Selectivity
- CW: 50-1000 Hz
SSB: 250-3600 Hz - Filters
- 300 / 500 / 1.3 / 1.6 / 1.9 / 2.2 / 2.5 kHz (DSP)
- Receiver system
- Digital Direct Conversion / SDR
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 8 ohms, .5 watts
Transmitter
- TX-range
- 160-10 / 6 m
- Modulations
- AM FM CW USB LSB RTTY PSK31/63 SSTV
- RF-output
- 5-8 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 10.5-15.0 V DC
- Current drain RX
- 350 mA
- TX
- 2 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 540 gr (1.2 lbs)
- Form factor
- Portable
- Manufactured
- Between 2018 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 128×64 pixels LCD
- Accessories
- -
- RigReference ID
- 6376
- MPN
- LNR-PRECISION-LD-000011
Manuals, diagrams and brochures
- LNR LD-11 User Manual PDF - 978.0 kB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used LNR Precision LD-11. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the LNR Precision LD-11 in Good condition is around:
- USD 564
These estimates are based on the following prices:
