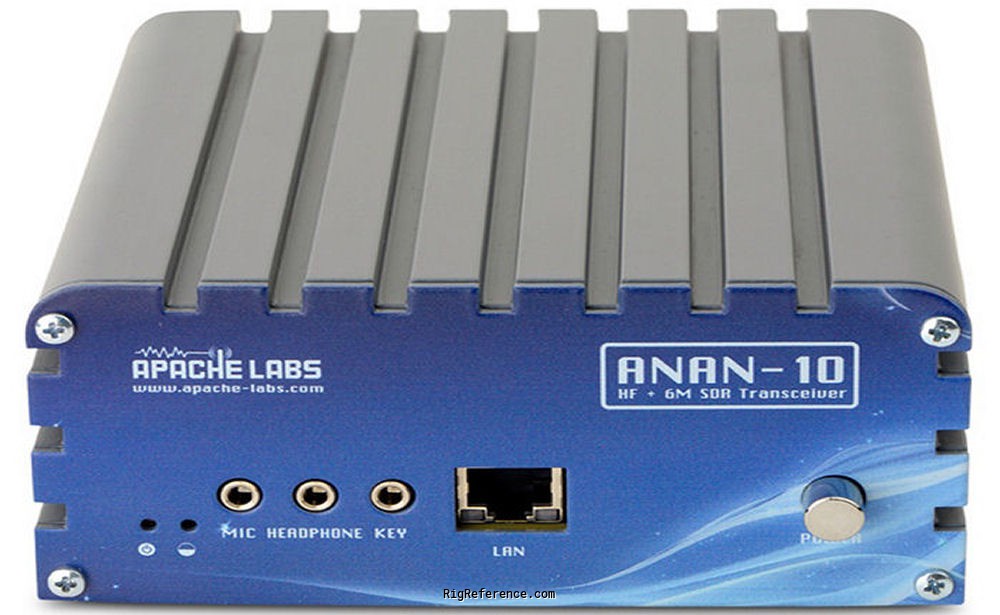

Supports seven fully independent receivers (software dependent). Each receiver can display 48/96/192/384/1152 kHz of spectrum. Full duplex, any split over the entire range. Full QSK. Transverter output. Ethernet connection.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ?
- Tuning steps
- Software defined
- Memories
- ?
Receiver
- RX-range
- 0.01-55 MHz
- Modulations
- Multiple (Software defined)
- Sensitivity
- ?
- Selectivity
- Software defined
- Filters
- Software defined
- Receiver system
- Direct conversion
- IF-frequencies
- Software defined
- Image rejection
- ?
- Audio output
- 1 W
Transmitter
- TX-range
- 10-160 m + WARC / 6 m
- Modulations
- Multiple (Software defined)
- RF-output
- 15 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 201x and 20xx in India
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6420
- MPN
- APACHE-LABS-ANAN-000010
