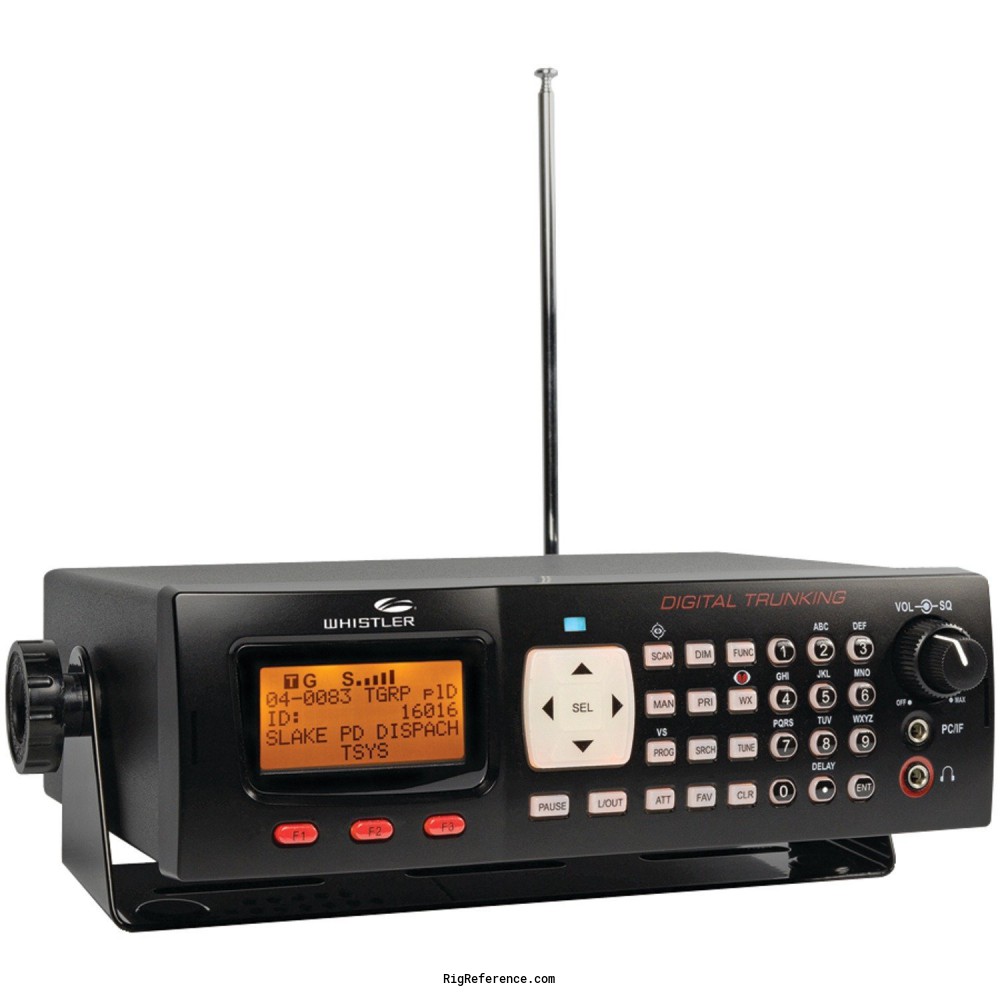

Whistler WS1065

DESKTOP/MOBILE SCANNER RADIO

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

General characteristics

HAM bands
6m  2m  70cm
Frequency stability
?
Tuning steps
3.125 / 5 / 6.25 / 7.5 / 8.33 / 12.5 / 25 kHz

Receiver

RX-range
25-54 / 108-174 / 216-512 / 764-960 / 1240-1300 MHz
Modulations
AM   FM   W-FM   P25
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 380.8 MHz
2nd: 21.4 MHz
3rd: 455 kHz
Image rejection
?
Audio output
1.8 W

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
12-16 V DC
Current drain RX
?
TX
-

Physical

Manufactured
Between 2014 and 201x in USA
Dimensions (w×h×d)
185 × 55 × 135 mm (7.28 × 2.17 × 5.31 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile

Other features

Memories
1800 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Trunking: Motorola, LTR, EDACS
Spectrum sweeper
CTCSS/PL + DCS
Weather channels
Object oriented memory
1800 programmable objects
EEPROM storage
PC-programmable
Accessories
?
MPN
WHISTLER-WS001065
